Geluidskaart Creative Labs Sound Blaster Live! PCI Gameport CT4760 EMU10K1 (2e kans)

 13,92 incl. BTW

Availability: 1 op voorraad Artikelnummer: 2K-UBK-0117-CT4760 Categorieën: , Tags: , , , , , , ,
Vergelijken
Creative Labs

Beschrijving

Dit is een 2e KANS/Vintage artikel/product, en is getest op werking/functionaliteit!


— GARANTIE 14 dagen na aankoop —

Getest op Windows XP, drivers worden automatisch gevonden en geïnstalleerd.

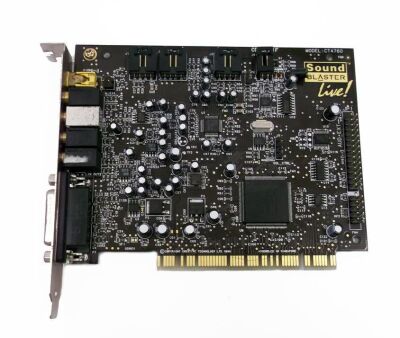

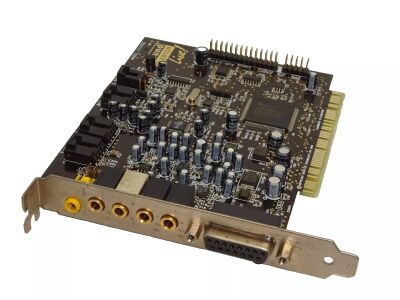

The Creative Labs Sound Blaster Live! CT4760 is a PCI sound card, known for its high-quality audio processing and support for features like Environmental Audio (EAX) for 3D positional audio. It was a popular choice for gamers and audiophiles seeking an upgrade from older Sound Blaster models.

Here’s a breakdown of its key specifications and features:


Live! Drive IR: The Platinum and MP3+ variants were bundled with the Live! Drive IR, a 5.25″ drive bay module for front panel connectivity and remote control.

Model: CT4760, specifically the Sound Blaster Live! X-Gamer variant.

Form Factor: PCI card, designed for installation in a computer’s PCI slot.

Audio Processor: Features the EMU10K1 chip, known for its digital audio processing capabilities.

Audio Output: Supports surround sound, initially up to 4 speakers (quadraphonic) and later variants like the X-Gamer 5.1 supported 5.1 surround sound.

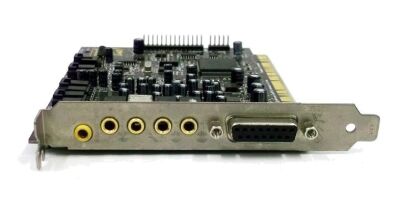

Connectivity: Includes various audio ports like 3.5mm input and output jacks, MIDI I/O, and potentially a combined analog/digital output jack on some models.

Bundled Software: Often came with Live! Ware 3.0 CD-ROM and potentially full release games.

Variants: Several variants exist, including X-Gamer, X-Gamer 5.1, Platinum, and MP3+.

Notable Features:

EAX Support: Allows for realistic 3D audio effects in games.

Digital Audio Processing: The EMU10K1 chip handles audio digitally at every stage, minimizing analog signal losses.

Resampling Issues: The card had limitations with resampling audio CD source material (44.1 kHz) due to the EMU10K1’s internal 48 kHz sample rate.

Extra informatie

Gewicht 1000 g
Afmetingen 11 × 11 × 1,5 mm
Chip

MIDI/Gameport

Connector (MIC-IN)

Interface

Connector (LINE-IN)

Connector (LINE-OUT)

Connector (REAR-OUT)

Connector (DIGITAL-OUT)

Slotbreedte

Merk

Creative Labs

Creative Labs
