Humidifier ultrasonic spray atomizer 8mm sticks met aansturing module QUAD DIY Package USB-C

Beschrijving

Leuk voor Halloween props, of om een vocht sensor te testen.

Features:

1.100% brand new high-quality product, made of high-quality materials, compact in size, and easy to install.

2. Convenient application, four head spray, strong fog volume, continuous spray without switch power on.

3. Upgrade the TYPE-C interface, with strong versatility, high fog output, stable performance, simple use, and easy to get started with.

4. High efficiency and stability, spray when electrified, long service life.

5. Wide range of applications: DIY self-made, plant moisturizing, product application, module set ready to use, each set of modules with brackets and cotton swabs, easy to assemble.

Parameter:

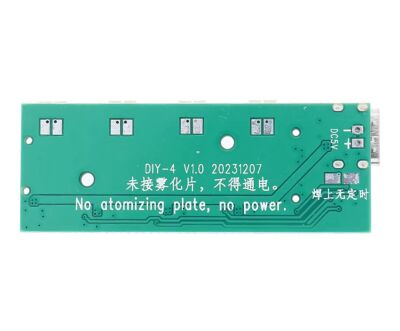

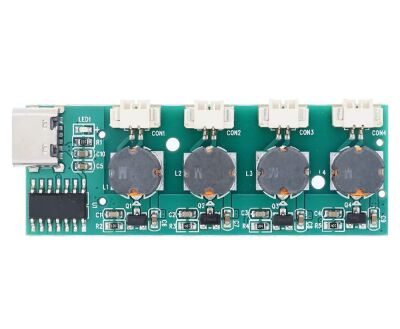

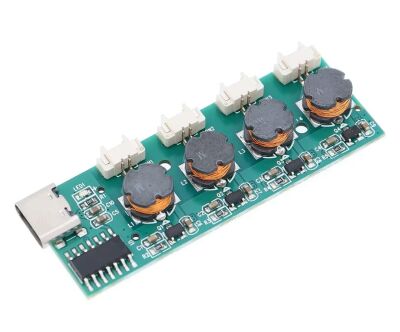

Name: Unswitched atomization drive board

Material: 1.2MM FR-4

Power plug: TYPE-C interface

Rated voltage: DC5V (power supply)

Rated current: 300MA (minimum 2A)

Power: 2.5-3W

Atomization frequency: 108KHZ ± 2KHZ

Module: 58.7 * 19.6MM

Cotton swab: 7 * 121MM

Nebulizer parameters:

Drive voltage: 5V

Resonant frequency: 108-110KHZ ± 5

Rated power: 2W

Punch count: 1100

Aperture: 4-5UM

Outer diameter of silicone sleeve: 20MM

Rubber ring thickness: 3MM

Steel plate diameter: 16MM

Line length: 25CM

Wire terminal: PH2.0

Attention: DC5V (power supply), no no-load use is allowed. Use 4 nozzles at the same time, otherwise it may cause board burning!

usage method:

1. First, install the atomizer bracket and cotton swab

2. Connect the atomizing plate to the module atomizing plate port

3. Connect the power supply to the module power port again

4. Press the power switch

5. Spray when the atomizer meets water

matters needing attention:

1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled

2. It is strictly prohibited to power on without connecting the atomizing plate

3. It is strictly prohibited to use fast chargers

4. It is strictly prohibited to modify modules

5. The module must not touch water

6. Full steel sheet (raised surface) in downward contact

Cotton swab absorbs water

7. Rated power input

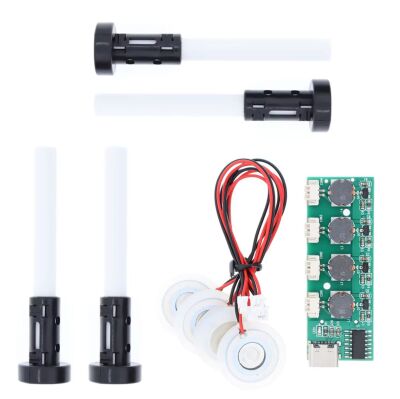

Package include:

1x Module

4x Transparent cotton stick holder

4x Cotton swab

4x Nebulizer
