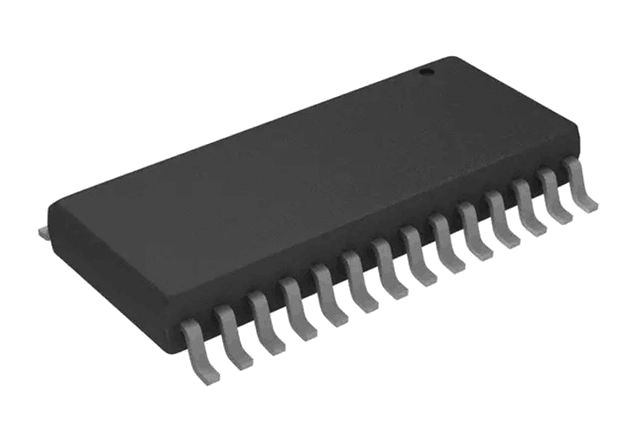

I/O expander 16-poorten I2C MCP23017 SOP-28
I/O expander 16-poorten I2C MCP23017 SOP-28

I/O expander 16-poorten I2C MCP23017 SOP-28

€ 2,63 incl. BTW

Availability: Uitverkocht Artikelnummer: IC-0009-23017 Categorie: Tags: , , , , ,

Voorraad notificatie

Vergelijken

Beschrijving

Informatie (ENG):

The MCP23017 device provides an 16 bit, general purpose, parallel I/O expansion for I2C bus applications. The MCP23008-E/P consists of multiple 16 bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
  • High speed I2C™ interface
  • 3 Hardware address pins
  • Configurable interrupt output pin as active high, active low or open drain
  • Configurable interrupt source
  • Polarity Inversion register to configure the polarity of the input port data
  • External reset input
  • Low standby current: 1µA max.

Toepassingen

Automation & Process Control; Automotive; Clock & Timing; Consumer Electronics; Aerospace, Defence, Military; Embedded Design & Development; LED Lighting; Industrial; Motor Drive & Control

Extra informatie

Gewicht 1,5 g
Afmetingen 2 × 1 × 1,3 mm
