2e KANS
Niet op voorraad

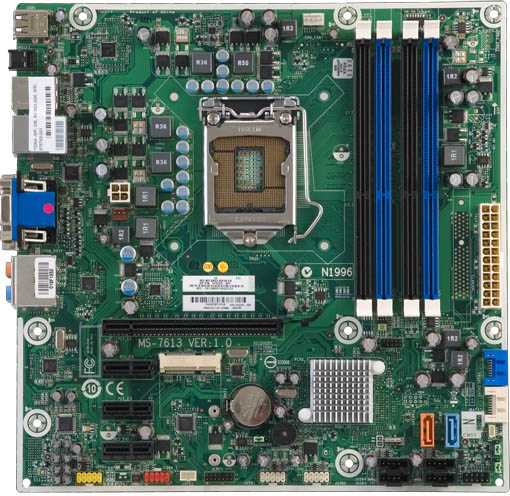

Moederbord Socket 1156 DDR3 PCI-E MicroATX 24-pins / HP MS-7613 v1.1

 24,20 incl. BTW

Availability: Uitverkocht Artikelnummer: 2K-MOB-0005-MS7613 Categorieën: , Tags: , , , , , , ,

Voorraad notificatie

Vergelijken
HP

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

HP MS-7613 (Iona-GL8E) compatibility review
The HP MS-7613 (Iona-GL8E) uses the Intel LGA 1156/Socket H CPU socket. Any compatible Intel CPU will have the same socket entry. It uses the DDR3 memory type, with maximum speeds of up to 1333 MHz, and 4 DDR3 slots allowing for a maximum total of 16 GB RAM.
The Micro-ATX HP MS-7613 (Iona-GL8E) should fit into all ATX cases, but its smaller size allows you to downsize your system build as a whole. Its size comes at the cost of features, so there are likely to be far fewer connections and expansion options available than in a larger motherboard.
The HP MS-7613 (Iona-GL8E) has 4 SATA 3.0 hard drive slots. These allow for theoretical data transfer speeds of up to 6GB/s, as opposed to the 3GB/s of SATA 2.0. Generally speaking, only high performance hard drives, specifically solid-state drives, will be able to take advantage of the bandwidth potential of SATA 3.0 ports, though it is backwards compatible, so you do not have to take advantage.
The HP MS-7613 (Iona-GL8E) supports onboard graphics. This allows for integrated graphics when paired with a compatible CPU that supports them. Integrated graphics are a cheap alternative to using a graphics card, but should be avoided when frequently using modern applications or games that require intense graphical processing. There are 1 PCIe x16 slots on this motherboard. This means it is perfectly capable of accommodating the latest graphics cards, although it is important to try and use a graphics card with the same graphics card interface of Not sure, as anything below will not reach the motherboard’s potential, and anything above will have its performance slashed to the bandwidth maximum of the HP MS-7613 (Iona-GL8E)’s Not sure. The HP MS-7613 (Iona-GL8E) does not support multiple graphics cards via Nvidia SLI or AMD Crossfire.
The HP MS-7613 (Iona-GL8E) has 12 USB 2.0 slots but no USB 3.0 slots. While USB 3.0 slots are so far by no means necessary, and with a plethora of USB 2.0 peripherals to choose from, the USB functionality on this motherboard should be fine. If planning on building a new system, a motherboard with USB 3.0 is likely to have a longer life cycle, however.
  • MSI MS-7613 Ver:1.1 Socket LGA1156 Iona-GL8E Motherboard 612500-001

  • P/N: MS-7613
  • HP: Iona-GL8E
  • HP P/N 612500-001
  • Socket: LGA1156

  • Chipset:
  • Intel H57 Express

  • Form Factor:
  • Micro-ATX
  •  24.4 cm (9.6 in) x 24.4 cm (9.6 in)

  • Memory:
  • Memory upgrade information:
  • Supports DDR3 DIMMs only
  • Dual channel memory architecture
  • Four DDR3 DIMM (240-pin) sockets

  • DIMM types:
  • PC3-10600 (DDR3-1333)
  • PC3-8500 (DDR3-1066)
  • Non-ECC memory only, unbuffered
  • Supports up to 16 GB on 64-bit PCs
  • Maximum memory only if using 4GB DDR3 DIMM modules.

  • Expansion Slots:
  • 1 x PCI-e x 16
  • 3 x PCI-e x 1
  • 1 x PCI

  • Back Panel I/O Ports
  • 1 x VGA
  • 1 x DVI
  • 6 x USB
  • 1 x Optical Output
  • 6 x Audio
  • 1 x LAN (RJ-45)
  • 1 x Firewire

Manufacturer MSI

Form Factor Micro ATX

Socket Type Socket LGA1156

Memory Type DDR3 SDRAM

Number of Memory Slots 4

Expansion Slots PCI, PCI Express

Input/Output Ports Ethernet (RJ-45)

Features On-Board Audio, On-Board Video Chipset

Extra informatie

Gewicht 1000 g
Afmetingen 24 × 24 × 6 mm
