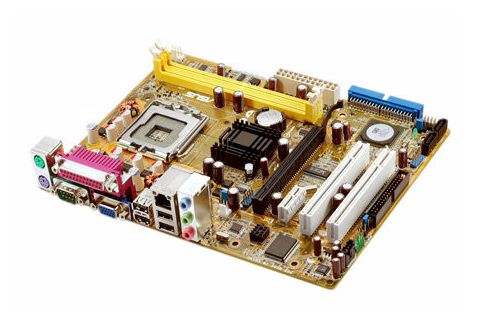

Moederbord Socket LGA775 DDR2 PCI-E MicroATX 24+4-pins / ASUS P5SD2-VM

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

– LGA775 socket for Intel® Core™2 Duo/Pentium D/Pentium 4/Celeron D
– SIS 672+SIS 968
– SIS Mirage 3+ Integrated Graphics
– FSB 1066o.c/800/533MHz
– Single-channel DDR2 667/533
– 2x SATA 3Gb/s with Raid 0 and RAID1
– Vista Premium ready

CPU, Chipset and Graphics features Intel LGA775 CPU
This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066o.c/800/ 533MHz FSB, Hyper-Threading Technology and core-speeds up to 3.8GHz and beyond.

 Intel Core™2 Duo
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066O.C/800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPUs in the world.

 Intel® 65nm Dual-Core CPU support
This motherboard supports Intel® Pentium® D/Pentium® 4/Celeron D® dual-core processors built on the 65-nanometer (nm) process technology with copper interconnect. Dual-core processors contain two physical CPU cores with dedicated L2 caches to meet demands for more powerful processing.

 64-bit CPU support
64-bit computing, the technology to replace 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.

 SIS Advanced HyperStreaming™ Architecture
The motherboard supports the SIS HyperStreaming™ technology that smartly manages data streaming between the Northbridge and Southbridge, memory, graphics interface, and other peripherals for efficient and superior performance.

ASUS Unique features CrashFree BIOS 2
The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.

 EZ-Flash
With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.

 ASUS Q-Fan
ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.

Other features PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s.

 Serial ATA 3Gb/s
The motherboard supports the hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves.

 High Definition Audio
Enjoy six-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature..

 S/PDIF-out
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

————————————————-

• CPU
  LGA775 socket for Intel® Core™2 Duo/Pentium D/Pentium 4/Celeron D Processors
  Support Intel® next generation 45nm CPU
  Support Intel® EIST/Hyper-Threading Technology
• Chipset
  SIS 672
  SIS 968
• Front Side Bus
  1066O.C/800/533 MHz
• Memory
  2 x 240-pin DIMM sockets support max. 4GB DDR2 667/533 non-ECC unbuffered memory
  *When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
• Expansion Slots
  1 x PCI-E x 16
  1 x PCI-E x 1
  2 x PCI
• VGA
  SIS Mirage 3+ Integrated Graphics, up to 256MB shared memory
• Storage
  SIS 968 South Bridge:
  -1 x UltraDMA 133/100/66/33
  – 2 x SATA 3Gb/s with RAID 0 and RAID 1 function
• LAN
  Phy 10/100 LAN
• Audio
  High Definition Audio, Realtek ALC662 6-channel CODEC
  Support Jack-detect and SPIDF-OUT interface
• USB
  Max. 8 USB2.0 ports (4 on back I/O,4 on board)
• Special Features
  CrashFree BIOS 2
  Q-FAN
  EZ Flash
  MyLogo
• Back Panel I/O Ports
  1 x Parallel
  1 x COM Port
  1 x VGA Port
  1 x PS/2 Keyboard
  1 x PS/2 Mouse
  1 x RJ45
  4 x USB 2.0/1.1
  6-Channel Audio I/O
• Internal I/O Connectors
  1 x Floppy connector
  1 x IDE connector for two devices
  2 x USB 2.0 connectors for 4 additional USB 2.0 ports
  1 x CPU fan connector
  1 x Chassis fan connector
  1 x Chassis intrusion connector
  1 x S/PDIF out connector
  1 x 4-pin internal speaker connector
  1 x CD audio-in connector
  1 x Front panel Audio connector
  1 x 24-pin ATX Power connector
  1 x 4-pin ATX 12V Power connector
  1 x System panel connector
• BIOS
  4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI3.0, SM BIOS2.4
• Manageability
  WOL by PME, WOR by PME, Chassis Intrusion, PXE
• O/S Compatibility
  Windows Vista/XP/2003 sever/2000
• Accessories
  1 x SATA cable
  1 x SATA power cable
  1 x UltraDMA 133/100/66 cable
  1 x FDD cable
  1 x I/O Shield
  1 x User Guide
• Form Factor
  mATX Form Factor, 9.6”x 7.4”(24.4cm x 18.8cm)

——————————–

Extra informatie

Merk

ASUS
