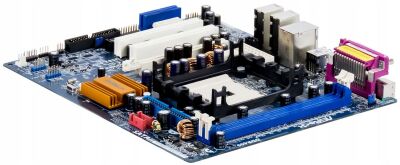

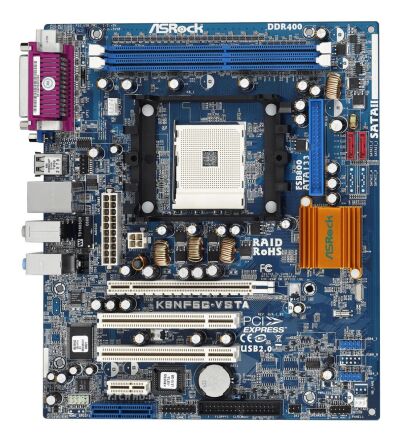

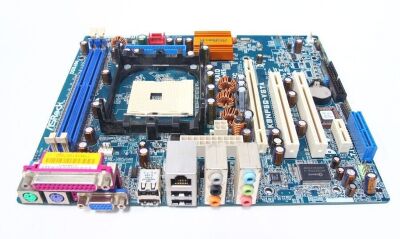

Moederbord Socket 754 DDR PCI-E 16X MicroATX 20+4-pins / ASRock K8NF6G-VSTA MET CPU HEATSINK, GEEN I/O SHIELD (2e kans)

 24,20 incl. BTW

Availability: 1 op voorraad Artikelnummer: 2K-MOB-0052-K8NF6GVSTA Categorieën: , , Tags: , , , , , ,
Vergelijken
ASRock

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

Meer informatie: https://www.asrock.com/mb/nvidia/k8nf6g-vsta/

  • Socket 754 for AMD Athlon™ 64 and Sempron Processors
  • NVIDIA® GeForce 6100 / nForce 405 Chipset
  • Chipset capable to FSB 1000 MHz (2.0 GT/s), Hyper-Transport Technology, AMD Cool ‘n’ Quiet Technology
  • Integrated NVIDIA® GeForce6-class graphics DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB
  • Supports DDR400/333/266 with 2 DIMM slots, maximum capacity up to 2GB
  • Hybrid Booster – ASRock Safe Overclocking Technology
  • Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
  • 1 x PCI Express Graphics slot
  • 1 x PCI Express x1 slot
  • 2 x SATA2 3.0Gb/s, supports RAID 0, 1, JBOD, NCQ, and Hot Plug functions
  • 7.1 CH Windows® Vista™ Basic Level HD Audio (ALC883/ALC861VD Audio Codec)
  • Worldwide First K8-754 MB with Windows® Vista™ Basic Logo
  • HD 8CH I/O: 4 ready-to-use USB Ports, HD 7.1 channel audio jacks

  • CPU- Socket 754 for AMD Athlon™ 64 and Sempron processors
    – Supports AMD’s Cool ‘n’ Quiet Technology
    – Chipset capable to FSB 1000MHz (2.0 GT/s)
    – Supports Untied Overclocking Technology
    – Supports Hyper-Transport Technology
  • Chipset- NVIDIA® GeForce 6100 / nForce 405
  • Memory- 2 x DDR DIMM slots
    – Supports DDR400 / 333 / 266 non-ECC, un-buffered memory
    – Max. capacity of system memory: 2GB
  • BIOS- 4Mb AMI BIOS
    – AMI Legal BIOS
    – Supports “Plug and Play”
    – ACPI 1.1 Compliance Wake Up Events
    – Supports Jumperfree
    – SMBIOS 2.3.1 Support
  • Graphics- Integrated NVIDIA® GeForce6-class graphics DX9.0 VGA
    – Pixel Shader 3.0
    – Max. shared memory 256MB
  • Audio- 7.1 CH Windows® Vista™ Basic Level HD Audio (ALC861VD/ALC883 Audio Codec)
  • LAN- Realtek PHY RTL8201CL
    – Speed: 10/100 Ethernet
    – Supports Wake-On-LAN
    – Supports PXE
  • Slots- 2 x PCI slots
    – 1 x PCI Express Graphics slot
    – 1 x PCI Express x1 slot
    – 1 x HDMR slot
  • Connector- 2 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, JBOD), NCQ, and Hot Plug functions
    – 1 x ATA133 IDE connector (supports 2 x IDE devices)
    – 1 x Floppy connector
    – 1 x IR header
    – 1 x Game header
    – 1 x COM port header
    – CPU/Chassis FAN connector
    – 20 pin ATX power connector
    – 4 pin 12V power connector
    – CD in header
    – Front panel audio connector
    – 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • Rear Panel I/OHD 8CH I/O
    – 1 x PS/2 Mouse Port
    – 1 x PS/2 Keyboard Port
    – 1 x VGA Port
    – 1 x Parallel Port (ECP/EPP support)
    – 4 x Ready-to-Use USB 2.0 Ports
    – 1 x RJ-45 Port
    – HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Unique FeatureHybrid Booster:
    – CPU Frequency Stepless Control
    – ASRock U-COP
    – Boot Failure Guard (B.F.G.)
  • Accessories- I/O Shield
    – Floppy/ATA 133 Cables
    – 1 x SATA Data Cable (optional)
    – 1 x SATA 1 to 1 Power Cable (optional)
    – 1 x COM Port Bracket
    – 1 x HDMR card (optional)
  • Hardware Monitor- CPU Temperature Sensing
    – Chassis Temperature Sensing
    – CPU Fan Tachometer
    – Chassis Fan Tachometer
    – CPU Quiet Fan
    – Voltage Monitoring: +12V, +5V, +3.3V, Vcore
  • Form Factor- Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cm
  • OS- Microsoft Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
  • Certifications- FCC, CE

Extra informatie

Gewicht 1000 g
Afmetingen 24 × 24 × 6 mm
