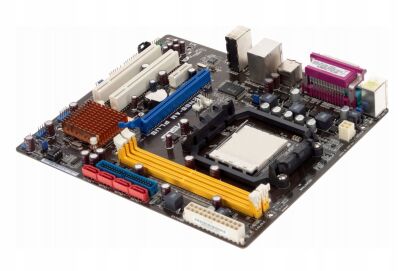

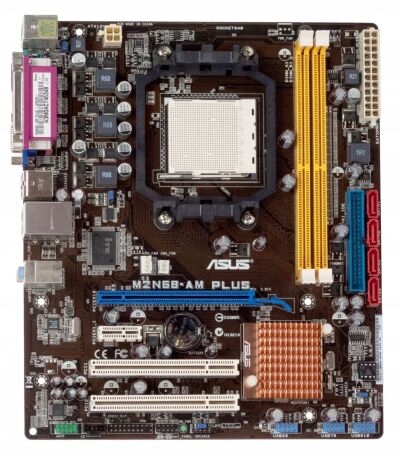

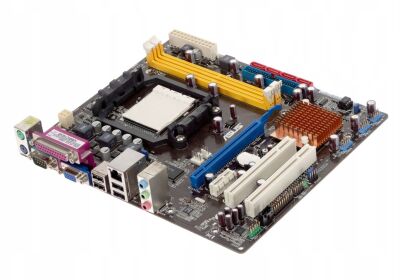

Moederbord Socket AM2 DDR2 PCI-E 16X MicroATX 24+4-pins / ASUS M2N68-AM PLUS MET CPU HEASINK, MET I/O SHIELD (2e kans)

€ 29,04 incl. BTW

Availability: 1 op voorraad Artikelnummer: 2K-MOB-0059-M2N68-AM Categorieën: , , Tags: , , , , , , , , ,
Vergelijken
ASUS

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

Meer informatie: https://www.asus.com/supportonly/m2n68_plus/helpdesk_knowledge/

  • Manufacturer Asus
  • Model M2N68-AM Plus
  • Socket AM2+
  • Chipset GeForce 7025
  • RAM DR2
  • Number of RAM slots 2
  • PCI extension 2
  • PCI 2
  • Extension slots 1x PCIe X16, 1x PCIe X1, 2x PCI, 4x Sata , IDE
  • Connections – back 2x PS/2, COM, LPT, VGA, 4x USB, LAN, 3x audio
  • I/O shield yes
  • Micro ATX format
  • Dimensions 244mm x 208mm
  • No original packaging. Is sealed in a static Beuatel. Written guarantee – 3 years !!!

CPU Support

Athlon 64 LE-1600+ (DH),1M,rev.F3,45W,SocketAM22.00G0301 GO
Athlon 64 LE-1620+ (DH),1M,rev.F3,45W,SocketAM22.00G0301 GO
Athlon 64 LE-1640+ (DH),1M,rev.F3,45W,SocketAM22.00G0301 GO
Athlon 64 LE-1640+ (DP),512K,rev.G2,45W,SocketAM22.00G0301 GO
Athlon 64 LE-1660+ (DP),512K,rev.G2,45W,SocketAM22.00G0301 GO
Athlon 64 X2 3600+ (DD),1MB,65W,rev.G,SocketAM22.00G0301 GO
Athlon 64 X2 3800+ (CU),512Kx2,65W,rev.F2,SocketAM22.00G0301 GO
Athlon 64 X2 4000+ (DD),1MB,rev.G,65W,SocketAM22.00G0301 GO
Athlon 64 X2 4200+ (DD),512Kx2,rev.G1,65W,SocketAM22.00G0301 GO
Athlon 64 X2 4200+ (DO),512Kx2,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 4400+ (DD),1MB,rev.G,65W,SocketAM22.00G0301 GO
Athlon 64 X2 4400+ (DO),1MB,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 4400+ (DU),1MB,rev.G2,65W,SocketAM2,ADO4400IAA5DU2.00G0317 GO
Athlon 64 X2 4600+ (DO),1M,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 4800+ (DD),1MB,rev.G,65W,SocketAM22.00G0301 GO
Athlon 64 X2 4800+ (DO),1MB,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 5000+ (DD),1MB,rev.G,65W,SocketAM22.00G0301 GO
Athlon 64 X2 5000+ (DO),1MB,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 5000+ (DS),1MB,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 5200+ (DD),1MB,rev.G,65W,SocketAM22.00G0301 GO
Athlon 64 X2 5200+ (DO),1MB,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 5400+ (DO),1M,rev.G2,65W,SocketAM22.00G0301 GO
Athlon 64 X2 5400+ (DS),1M,rev.G2,65W,SocketAM22.00G0317 GO
Athlon 64 X2 5600+ (CZ),2MB,rev.F3,89W,SocketAM22.00G0301 GO
Athlon 64 X2 5600+ (DO),2MB,rev.G2,89W,SocketAM22.00G0301 GO
Athlon 64 X2 5800+ (DO),2MB,rev.G2,SocketAM22.00G0301 GO
Athlon 64 X2 6000+ (CZ),2MB,rev.F3,125W,SocketAM22.00G0301 GO
Athlon 64 X2 6000+ (CZ),2MB,rev.F3,89W,SocketAM22.00G0301 GO
Athlon 64 X2 6000+ (DO),1MB,rev.G2,89W,SocketAM22.00G0317 GO
Athlon 64 X2 6400+ (CZ),2MB,rev.F3,125W,SocketAM22.00G0301 GO
Athlon 64 X2 6500+ ,2.3GHz,1MB,rev.B3,AD6500WCJ2BGH,95W,SocketAM2ALL0317 GO
Athlon IIX2 215(ADX215OCK22GM),2.7GHz,512KB,rev.C3,65W,SocketAM3ALL0603 GO
Athlon IIX2 215(ADX215OCK22GQ),2.7GHz,512KB,rev.C2,65W,SocketAM32.00G0502 GO
Athlon IIX2 220(ADX220OCK22GM),2.8GHz,512KB,rev.C3,65W,SocketAM3ALL0603 GO
Athlon IIX2 235e(AD235EHDK23GQ),2.7GHz,1MB,rev.C2,45W,SocketAM32.00G0412 GO
Athlon IIX2 240e(AD240EHDK23GQ),2.8GHz,1MB,rev.C2,45W,SocketAM32.00G0412 GO
Athlon IIX2 245e(AD245EHDK23GM),2.9GHz,1MB,rev.C3,45W,SocketAM3ALL0603 GO
Athlon IIX2 250e(AD250EHDK23GM),3.0GHz,1MB,rev.C3,45W,SocketAM3ALL0603 GO
Athlon IIX2 255(ADX255OCK23GQ),3.1GHz,1MB,rev.C2,65W,SocketAM3ALL0502 GO
Athlon IIX2 260(ADX260OCK23GM),3.2GHz,1MB,rev.C3,65W,SocketAM3ALL0603 GO
Athlon IIX3 415e(AD415EHDK32GM),2.5GHz,512KB,rev.C3,45W,SocketAM3ALL0603 GO
Athlon IIX3 425( ADX425WFK32GI),2.7GHz,512KB,rev.C2,95W,SocketAM32.00G0502 GO
Athlon IIX3 435( ADX435WFK32GI),2.9GHz,512KB,rev.C2,95W,SocketAM32.00G0502 GO
Athlon IIX3 450(ADX450WFK32GM),3.2GHz,512KB,rev.C3,95W,SocketAM3ALL0603 GO
Athlon IIX4 610e(AD610EHDK42GM),2.4GHz,512KB,rev.C3,45W,SocketAM3ALL0603 GO
Athlon IIX4 620(ADX620WFK42GI),2.6GHz,512KB,rev.C2,95W,SocketAM32.00G0412 GO
Athlon IIX4 630(ADX630WFK42GI),2.8GHz,512KB,rev.C3,95W,SocketAM32.00G0412 GO
Athlon X2 4050e (DO),1M,rev.G2,45W,SocketAM22.00G0301 GO
Athlon X2 4450e (DO),1M,rev.G2,45W,SocketAM22.00G0301 GO
Athlon X2 4850e (DO),1M,rev.G2,45W,SocketAM22.00G0301 GO
Athlon X2 5000+ (DU),1MB,rev.G2,65W,SocketAM2ALL0317 GO
Athlon X2 5050e (DO),1MB,rev.G2,45W,ADH5050IAA5DO,SocketAM2ALL0317 GO
Athlon X2 7450+ ,2.4GHz,2MB,rev.B3,AD7450WCJ2BGH,95W,SocketAM2+ALL0323 GO
Athlon X2 7550+ ,2.5GHz,2MB,rev.B3,AD7550WCJ2BGH,95W,SocketAM2+ALL0323 GO
Athlon X2 7750+ ,2.7GHz,2MB,rev.B3,AD775ZWCJ2BGH,95W,SocketAM2+ALL0323 GO
Athlon X2 BE-2300 (DD),1M,45W,rev.G1,SocketAM22.00G0301 GO
Athlon X2 BE-2300 (DO),1M,45W,rev.G2,SocketAM22.00G0301 GO
Athlon X2 BE-2350 (DD),1M,45W,rev.G1,SocketAM22.00G0301 GO
Athlon X2 BE-2350 (DO),1M,45W,rev.G2,SocketAM22.00G0301 GO
Athlon X2 BE-2400 (DO),1M,45W,rev.G2,SocketAM22.00G0301 GO
Phenom IIX2 560(HDZ560WFK2DGM),3.3GHz,512KB,rev.C3,80W,SocketAM3ALL0603 GO
Phenom IIX3 710 (HDX710WFK3DGI),2.6GHz,95W,rev.C2,SocketAM3,Triple-CoreALL0403 GO
Phenom IIX3 715 (HDZ715WCJ3DGI),2.8GHz,95W,rev.C2,SocketAM2+,Triple-Core2.00G0411 GO
Phenom IIX3 720 (HDX720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core2.00G0411 GO
Phenom IIX3 720 (HDZ720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-CoreALL0403 GO
Phenom IIX3 740 (HDZ740WFK3DGI),3.0GHz,95W,rev.C2,SocketAM3,Triple-Core2.00G0411 GO
Phenom IIX4 805 (HDX805WFK4FGI),2.5GHz,95W,rev.C2,SocketAM3,Quad-CoreALL0403 GO
Phenom IIX4 810 (HDX810WFK4FGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core0323 GO
Phenom IIX4 820 (HDX820WFK4FGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core2.00G0411 GO
Phenom IIX4 910 (HDX910WFK4DGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core0403 GO
Phenom IIX4 920 (HDX920XCJ4DGI),2.8GHz,125W,rev.C2,SocketAM2+,Quad-CoreALL0323 GO
Phenom IIX4 925 (HDX925WFK4DGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-CoreALL0323 GO
Phenom IIX4 940 (HDZ940XCJ4DGI),3.0GHz,125W,rev.C2,SocketAM2+,Quad-CoreALL0323 GO
Phenom IIX4 945 (HDX945WFK4DGI),3.0GHz,2048KB,95W,rev.C2,SocketAM3,Quad-Core2.00G0411 GO
Phenom IIX4 955 (HDX955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core2.00G0504 GO
Phenom IIX4 955 (HDZ955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-CoreALL0603 GO
Phenom IIX6 1035T(HDT35TWFK6DGR),2.6GHz,95W,rev.E0,SocketAM3,6-CoreALL0603 GO
Phenom IIX6 1055T(HDT55TFBK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-CoreALL0603 GO
Phenom IIX6 1055T(HDT55TWFK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-CoreALL0603 GO
Phenom IIX6 1090T(HDT90ZFBK6DGR),3.2GHz,125W,rev.E0,SocketAM3,6-CoreALL0603 GO
Phenom X3 8250e (HD8250ODJ3BGH),1.9GHz,rev.B3,65W,SocketAM2+,Triple-CoreALL0317 GO
Phenom X3 8400 (HD8400WCJ3BGD),2.1GHz,rev.B2,95W,SocketAM2+,Triple-Core2.00G0301 GO
Phenom X3 8450 (HD8450WCJ3BGH),2.1GHz,rev.B3,95W,SocketAM2+,Triple-Core2.00G0301 GO
Phenom X3 8450e (HD8450ODJ3BGH),2.1GHz,rev.B3,65W,SocketAM2+,Triple-CoreALL0317 GO
Phenom X3 8550 (HD8550WCJ3BGH),2.2GHz,rev.B3,95W,SocketAM2+,Triple-CoreALL0317 GO
Phenom X3 8600(HD8600WCJ3BGD),2.3GHz,95W,rev.B2,SocketAM2+,Triple-Core2.00G0301 GO
Phenom X3 8650 (HD8650WCJ3BGH),2.3GHz,95W,rev.B3,SocketAM2+,Triple-Core2.00G0301 GO
Phenom X3 8750 (HD8750WCJ3BGH),2.4GHz,rev.B3,95W,SocketAM2+,Triple-Core2.00G0301 GO
Phenom X3 8750 (HD875ZWCJ3BGH),2.4GHz,rev.B3,95W,SocketAM2+,Triple-CoreALL0313 GO
Phenom X3 8850 (HD8850WCJ3BGH),2.4GHz,rev.B3,95W,SocketAM2+,Triple-CoreALL0313 GO
Phenom X4 9100e (HD910OBJ4BGD),1.8GHz,65W,rev.B2,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9150 (HD9150ODJ4BGH),1.8GHz,65W,rev.B3,SocketAM2+,Quad-Core2.00G0317 GO
Phenom X4 9350 (HD9350ODJ4BGH),2.0GHz,65W,rev.B3,SocketAM2+,Quad-Core2.00G0317 GO
Phenom X4 9450 (HD9450ODJ4BGH),2.1GHz,65W,rev.B3,SocketAM2+,Quad-CoreALL0317 GO
Phenom X4 9500 (HD9500WCJ4BGD),2.2GHz,rev.B2,95W,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9550 (HD9550WCJ4BGH),2.2GHz,rev.B3,95W,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9600 (HD9600WCJ4BGD),2.3GHz,95W,rev.B2,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9600 (HD960ZWCJ4BGD),2.3GHz,95W,rev.B2,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9650 (HD9650WCJ4BGH),2.3GHz,95W,rev.B3,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9750 (HD9750WCJ4BGH),2.4GHz,95W,rev.B3,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9750 (HD9750XAJ4BGH),2.4GHz,125W,rev.B3,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9850 (HD9850WCJ4BGH,rev.B3,SocketAM2+,Quad-CoreALL0317 GO
Phenom X4 9850 (HD9850XAJ4BGH),2.5GHz,125W,rev.B3,SocketAM2+,Quad-Core2.00G0301 GO
Phenom X4 9850 (HD985ZXAJ4BGH),2.5GHz,125W,rev.B3,SocketAM2+,Quad-Core2.00G0301 GO
Sempron 140,SDX140HBK13GQ,2.7GHz,1024K,rev.C2,45W,SocketAM32.00G0502 GO
Sempron 145,SDX145HBK13GM,2.8GHz,1024K,rev.C3,45W,SocketAM3ALL0603 GO
Sempron 2100+ (DD),512K,rev.G1,65W,SocketAM22.00G0301 GO
Sempron 2100+ (DO),512K,rev.G2,65W,SocketAM22.00G0301 GO
Sempron 2300+ (DO),512K,rev.G2,SocketAM22.00G0301 GO
Sempron LE-1100 (DE),256K,rev.G1,45W,SocketAM22.00G0301 GO
Sempron LE-1150 (DE),256K,rev.G1,45W,SocketAM22.00G0301 GO
Sempron LE-1200 (DE),512K,rev.G2,45W,SocketAM22.00G0301 GO
Sempron LE-1200 (DP),512K,rev.G2,45W,SocketAM2ALL0313 GO
Sempron LE-1250 (DP),512K,rev.G2,45W,SocketAM22.00G0301 GO
Sempron LE-1300 (DP),512K,rev.G2,45W,SocketAM22.00GGO

Extra informatie

Gewicht 1000 g
Afmetingen 24 × 24 × 6 mm
