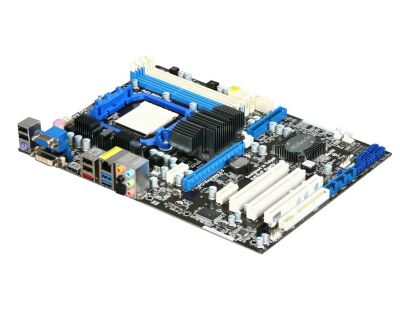

Moederbord Socket AM3 DDR3 PCI-E 16X ATX 24+8-pins / ASRock 880GXH/USB3 MET CPU HEATSINK, MET I/O SHIELD (2e kans)

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Let op: werkt niet met nieuwere AM3 AMD-FX processors, zie onder voor CPU lijst

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zelf zoeken op internet tenzij anders aangegeven.
– Lees informatie goed door kwa ondersteuning processor, geheugen, etc.

---

Meer info: https://www.asrock.com/mb/AMD/880gxhusb3/

• Phenom II X6 6-Core CPU Ready
• ASRock DuraCap (2.5 x longer life time), 100% Japan made high quality conductive polymer capacitors
• Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
• Turbo 50 Technology
• Integrated AMD Radeon HD 4250 graphics, DX10.1 class iGPU, Shader Model 4.1, Max. shared memory 512MB
• 1 USB 3.1 Gen1
• Supports ASRock OC Tuner, IES, Instant Boot, Instant Flash, OC DNA, Multi-Speed Fan Control
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports Premium Blu-ray audio
• ErP/EuP Ready (ErP/EuP ready power supply is required)
• Free Software : CyberLink DVD Suite – OEM and Trial; Creative Sound Blaster X-Fi MB – Trial

• CPU- Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
  – 6-Core CPU Ready
  – Supports CPU up to 140W
  – Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
  – V4 + 1 Power Phase Design
  – Supports AMD’s Cool ‘n’ Quiet Technology
  – FSB 2600 MHz (5.2 GT/s)
  – Supports Untied Overclocking Technology
  – Supports Hyper-Transport 3.0 (HT 3.0) Technology
• Chipset- Northbridge: AMD 880G
  – Southbridge: AMD SB710
• Memory- Dual Channel DDR3 memory technology
  – 4 x DDR3 DIMM slots
  – Supports DDR3 2000(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
  – Max. capacity of system memory: 16GB**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS- 8Mb AMI Legal BIOS
  – Supports “Plug and Play”
  – ACPI 1.1 Compliance Wake Up Events
  – Supports jumperfree
  – SMBIOS 2.3.1 Support
  – CPU, VCCM, NB, SB Voltage Multi-adjustment
• Graphics- Integrated AMD Radeon HD 4250 graphics
  – DX10.1 class iGPU, Shader Model 4.1
  – Max. shared memory 512MB
  – Three graphics output options: D-Sub, DVI-D and HDMI
  – Supports HDMI Technology with max. resolution up to 1920×1200 (1080P)
  – Supports Dual-link DVI with max. resolution up to 2560×1600 @ 75Hz
  – Supports D-Sub with max. resolution up to 2048×1536 @ 85Hz
  – Supports HDCP function with DVI and HDMI ports
  – Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
• Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  – Premium Blu-ray audio support
• LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  – Realtek RTL8111DL
  – Supports Wake-On-LAN
  – Supports PXE
• Slots- 1 x PCI Express 2.0 x16 slots (blue @ x16 mode)
  – 2 x PCI Express 2.0 x1 slots
  – 3 x PCI slots
  – Supports ATI™ Hybrid CrossFireX™
• Connector- 5 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
  – 1 x ATA133 IDE connector (supports 2 x IDE devices)
  – 1 x Floppy connector
  – 1 x IR header
  – 1 x COM port header
  – 1 x HDMI_SPDIF header
  – 1 x Power LED header
  – CPU/Chassis/NB/Power FAN connector
  – 24 pin ATX power connector
  – 8 pin 12V power connector
  – CD in header
  – Front panel audio connector
  – 3 x USB 2.0 headers (support 6 USB 2.0 ports)

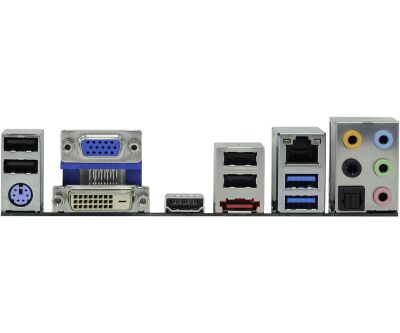

• Rear Panel I/OI/O Panel
  – 1 x PS/2 Keyboard Port
  – 1 x VGA/D-Sub Port
  – 1 x VGA/DVI-D Port
  – 1 x HDMI Port
  – 1 x Optical SPDIF Out Port
  – 5 x USB 2.0 Ports
  – 1 x eSATA2 Connector
  – 1 x USB 3.1 Gen1 Port (Fresco FL1000G)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• Unique Feature- ASRock OC Tuner
  – Intelligent Energy Saver
  – Instant Boot
  – ASRock Instant Flash
  – ASRock OC DNA
  – Hybrid Booster:
  – CPU Frequency Stepless Control- ASRock U-COP- Boot Failure Guard (B.F.G.)- Turbo 40 / Turbo 50 GPU Overclocking
  – Turbo UCC
• Accessories- I/O Shield
  – ATA 133 Cable
  – 2 x SATA Data Cables (optional)
• Hardware Monitor- CPU Temperature Sensing
  – Chassis Temperature Sensing
  – CPU, Chassis, NB, Power Fan Tachometer
  – CPU Quiet Fan
  – CPU, Chassis Fan multi-speed control
  – Voltage Monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
  – All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)
• OS- Microsoft Windows^® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant

CPU Support List

Socket	Family	Model	Power	Core	Frequency	FSB	L2 Cache	L3 Core	CPU Rev.	Validated BIOS
AM3	Phenom II X6	HDE00ZFBK6DGR(BE)	125W	Thuban	3300MHz	2000MHz	512KBx6	6MB	E0	P1.20
AM3	Phenom II X6	HDT90ZFBK6DGR(BE)	125W	Thuban	3200MHz	2000MHz	512KBx6	6MB	E0	All
AM3	Phenom II X6	HDT75TFBK6DGR	125W	Thuban	3000MHz	2000MHz	512KBx6	6MB	E0	P1.20
AM3	Phenom II X6	HDT65TWFK6DGR	95W	Thuban	2900MHz	2000MHz	512KBx6	6MB	E0	P1.20
AM3	Phenom II X6	HDT55TWFK6DGR	95W	Thuban	2800MHz	2000MHz	512KBx6	6MB	E0	All
AM3	Phenom II X6	HDT55TFBK6DGR	125W	Thuban	2800MHz	2000MHz	512KBx6	6MB	E0	All
AM3	Phenom II X6	HDT45TWFK6DGR	95W	Thuban	2700MHz	2000MHz	512KBx6	6MB	E0	P1.20
AM3	Phenom II X6	HDT35TWFK6DGR	95W	Thuban	2600MHz	2000MHz	512KBx6	6MB	E0	All
AM3	Phenom II X4	HDZ980FBK4DGM(BE)	125W	Deneb	3700MHz	2000MHz	512KBx4	6MB	C3	P1.20
AM3	Phenom II X4	HDZ975FBK4DGM(BE)	125W	Deneb	3600MHz	2000MHz	512KBx4	6MB	C3	P1.20
AM3	Phenom II X4	HDZ970FBK4DGM(BE)	125W	Deneb	3500MHz	2000MHz	512KBx4	6MB	C3	P1.20
AM3	Phenom II X4	HDZ965FBK4DGI(BE)	140W	Deneb	3400MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HDZ965FBK4DGM(BE)	125W	Deneb	3400MHz	2000MHz	512KBx4	6MB	C3	All
AM3	Phenom II X4	HDX955WFK4DGM	95W	Deneb	3200MHz	2000MHz	512KBx4	6MB	C3	All
AM3	Phenom II X4	HDX955FBK4DGM	125W	Deneb	3200MHz	2000MHz	512KBx4	6MB	C3	All
AM3	Phenom II X4	HDZ955FBK4DGM(BE)	125W	Deneb	3200MHz	2000MHz	512KBx4	6MB	C3	All
AM3	Phenom II X4	HDZ955FBK4DGI(BE)	125W	Deneb	3200MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HDX955FBK4DGI	125W	Deneb	3200MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HD96ZTWFK4DGR(BE)	95W	Zosma	3000MHz	2000MHz	512KBx4	6MB	E0	All
AM3	Phenom II X4	HDX945WFK4DGM	95W	Deneb	3000MHz	2000MHz	512KBx4	6MB	C3	All
AM3	Phenom II X4	HDX945WFK4DGI	95W	Deneb	3000MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HDX945FBK4DGI	125W	Deneb	3000MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HDX925WFK4DGM	95W	Deneb	2800MHz	2000MHz	512KBx4	6MB	C3	All
AM3	Phenom II X4	HDX925WFK4DGI	95W	Deneb	2800MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HD910EOCK4DGM	65W	Deneb	2600MHz	2000MHz	512KBx4	6MB	C3	All
AM3	Phenom II X4	HDX910WFK4DGI	95W	Deneb	2600MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HD905EOCK4DGI	65W	Deneb	2500MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HD900EOCK4DGI	65W	Deneb	2400MHz	2000MHz	512KBx4	6MB	C2	All
AM3	Phenom II X4	HDX850WFK42GM	95W	Deneb	3300MHz	2000MHz	512KBx4	NA	C3	P1.20
AM3	Phenom II X4	HDX840WFK42GM	95W	Propus	3200MHz	2000MHz	512KBx4	NA	C3	P1.20
AM3	Phenom II X4	HD840TWFK4DGR	95W	Zosma	2900MHz	2000MHz	512KBx4	6MB	E0	P1.20
AM3	Phenom II X4	HDX820WFK4FGI	95W	Deneb	2800MHz	2000MHz	512KBx4	4MB	C2	All
AM3	Phenom II X4	HDX810WFK4FGI	95W	Deneb	2600MHz	2000MHz	512KBx4	4MB	C2	All
AM3	Phenom II X4	HDX805WFK4FGI	95W	Deneb	2500MHz	2000MHz	512KBx4	4MB	C2	All
AM3	Phenom II X3	HDZ740WFK3DGI(BE)	95W	Heka	3000MHz	2000MHz	512KBx3	6MB	C2	All
AM3	Phenom II X3	HDZ720WFK3DGI(BE)	95W	Heka	2800MHz	2000MHz	512KBx3	6MB	C2	All
AM3	Phenom II X3	HDX720WFK3DGI	95W	Heka	2800MHz	2000MHz	512KBx3	6MB	C2	All
AM3	Phenom II X3	HDX710WFK3DGI	95W	Heka	2600MHz	2000MHz	512KBx3	6MB	C2	All
AM3	Phenom II X3	HD705EOCK4DGI	65w	Heka	2500MHz	2000MHz	512KBx3	6MB	C2	All
AM3	Phenom II X3	HD700EOCK3DGI	65W	Heka	2400MHz	2000MHz	512KBx3	6MB	C2	All
AM3	Phenom II X2	HDZ565WFK2DGM(BE)	80W	Callisto	3400MHz	2000MHz	512KBx2	6MB	C3	P1.20
AM3	Phenom II X2	HDZ560WFK2DGM(BE)	80W	Callisto	3300MHz	2000MHz	512KBx2	6MB	C3	P1.20
AM3	Phenom II X2	HDZ555WFK2DGM(BE)	80W	Callisto	3200MHz	2000MHz	512KBx2	6MB	C3	All
AM3	Phenom II X2	HDZ550WFK2DGI(BE)	80W	Callisto	3100MHz	2000MHz	512KBx2	6MB	C2	All
AM3	Phenom II X2	HDX550WFK2DGM	80W	Callisto	3100MHz	2000MHz	512KBx2	6MB	C3	All
AM3	Phenom II X2	HDX545WFK2DGI	80W	Callisto	3000MHz	2000MHz	512KBx2	6MB	C2	All
AM3	Phenom II X2	HDX545WFK2DGM	80W	Callisto	3000MHz	2000MHz	512KBx2	6MB	C3	All
AM3	Athlon II X4	ADX650WFK42GM	86.9W	Propus	3200MHz	2000MHz	512KBx4	N/A	C3	P1.20
AM3	Athlon II X4	ADX645WFK42GM	95W	Propus	3100MHz	2000MHz	512KBx4	N/A	C3	P1.20
AM3	Athlon II X4	ADX640WFK42GM	95W	Propus	3000MHz	2000MHz	512KBx4	N/A	C3	All
AM3	Athlon II X4	ADX635WFK42GI	95W	Propus	2900MHz	2000MHz	512KBx4	N/A	C2	All
AM3	Athlon II X4	ADX635WFK42GM	95W	Propus	2900MHz	2000MHz	512KBx4	N/A	C3	All
AM3	Athlon II X4	ADX630WFK42GI	95W	Propus	2800MHz	2000MHz	512KBx4	N/A	C2	All
AM3	Athlon II X4	ADX630WFK42GM	95W	Propus	2800MHz	2000MHz	512KBx4	N/A	C3	All
AM3	Athlon II X4	AD620EHDK42GM	45W	Propus	2600MHz	2000MHz	512KBx4	NA	C3	P1.20
AM3	Athlon II X4	ADX620WFK42GI	95W	Propus	2600MHz	2000MHz	512KBx4	N/A	C2	All
AM3	Athlon II X4	AD610EHDK42GM	45W	Propus	2400MHz	2000MHz	512KBx4	N/A	C3	All
AM3	Athlon II X4	AD615EHDK42GM	45W	Propus	2500MHz	2000MHz	512KBx4	N/A	C3	P1.20
AM3	Athlon II X4	AD605EHDK42GI	45W	Propus	2300MHz	2000MHz	512KBx4	N/A	C2	All
AM3	Athlon II X4	AD605EHDK42GM	45W	Propus	2300MHz	2000MHz	512KBx4	N/A	C3	All
AM3	Athlon II X4	AD600EHDK42GI	45W	Propus	2200MHz	1800MHz	512KBx4	N/A	C2	All
AM3	Athlon II X3	ADX460WFK32GM	95W	Rana	3400MHz	2000MHz	512KBx3	NA	C3	P1.20
AM3	Athlon II X3	ADX455WFK32GM	78.5W	Rana	3300MHz	2000MHz	512KBx3	N/A	C3	P1.20
AM3	Athlon II X3	ADX450WFK32GM	95W	Rana	3200MHz	2000MHz	512KBx3	N/A	C3	P1.20
AM3	Athlon II X3	ADX435WFK32GM	95W	Rana	2900MHz	2000MHz	512KBx3	N/A	C3	All
AM3	Athlon II X3	ADX440WFK32GM	95W	Rana	3000MHz	2000MHz	512KBx3	N/A	C3	All
AM3	Athlon II X3	ADX445WFK32GM	95W	Rana	3100MHz	2000MHz	512KBx3	N/A	C3	All
AM3	Athlon II X3	ADX440WFK32GI	95W	Rana	3000MHz	2000MHz	512KBx3	N/A	C2	All
AM3	Athlon II X3	ADX435WFK32GI	95W	Rana	2900MHz	2000MHz	512KBx3	N/A	C2	All
AM3	Athlon II X3	AD425EHDK32GM	45W	Rana	2700MHz	2000MHz	512KBx3	NA	C3	P1.20
AM3	Athlon II X3	ADX425WFK32GI	95W	Rana	2700MHz	2000MHz	512KBx3	N/A	C2	All
AM3	Athlon II X3	AD420EHDK32GM	45W	Rana	2600MHz	2000MHz	512KBx3	N/A	C3	P1.20
AM3	Athlon II X3	AD415EHDK32GM	45W	Rana	2500MHz	2000MHz	512KBx3	N/A	C3	All
AM3	Athlon II X3	AD405EHDK32GM	45W	Rana	2300MHz	2000MHz	512KBx3	N/A	C3	All
AM3	Athlon II X3	AD405EHDK32GI	45W	Rana	2300MHz	2000MHz	512KBx3	N/A	C2	All
AM3	Athlon II X3	AD400EHDK32GI	45W	Rana	2200MHz	2000MHz	512KBx3	N/A	C2	All
AM3	Athlon II X2	ADX270OCK23GM	60.2W	Regor	3400MHz	2000MHz	1MBx2	N/A	C3	P1.20
AM3	Athlon II X2	ADX265OCK23GM	60.2W	Regor	3300MHz	2000MHz	1MBx2	N/A	C3	P1.20
AM3	Athlon II X2	ADX260OCK23GM	65W	Regor	3200MHz	2000MHz	1MBx2	N/A	C3	All
AM3	Athlon II X2	AD255EHDK23GM	45W	Regor	3100MHz	2000MHz	1024KBx2	NA	C3	P1.20
AM3	Athlon II X2	ADX255OCK23GQ	65W	Regor	3100MHz	2000MHz	1MBx2	N/A	C2	All
AM3	Athlon II X2	AD250EHDK23GM	45W	Regor	3000MHz	2000MHz	1MBx2	N/A	C3	All
AM3	Athlon II X2	ADX255OCK23GM	65W	Regor	3100MHz	2000MHz	1MBx2	N/A	C3	All
AM3	Athlon II X2	ADX250OCK23GM	65W	Regor	3000MHz	2000MHz	1MBx2	N/A	C3	All
AM3	Athlon II X2	ADX250OCK23GQ	65W	Regor	3000MHz	2000MHz	1MBx2	N/A	C2	All
AM3	Athlon II X2	ADX225OCK22GM	65W	Regor	2900MHz	2000MHz	512KBx2	N/A	C3	P1.20
AM3	Athlon II X2	AD245EHDK23GM	45W	Regor	2900MHz	2000MHz	1MBx2	N/A	C3	All
AM3	Athlon II X2	ADX245OCK23GQ	60W	Regor	2900MHz	2000MHz	1MBx2	N/A	C2	All
AM3	Athlon II X2	ADX245OCK23GM	65W	Regor	2900MHz	2000MHz	1MBx2	N/A	C3	All
AM3	Athlon II X2	AD240EHDK23GM	45W	Regor	2800MHz	2000MHz	1MBx2	N/A	C3	All
AM3	Athlon II X2	AD240EHDK23GQ	45W	Regor	2800MHz	2000MHz	1MBx2	N/A	C2	All
AM3	Athlon II X2	ADX240OCK23GQ	60W	Regor	2800MHz	2000MHz	1MBx2	N/A	C2	All
AM3	Athlon II X2	AD235EHDK23GQ	45W	Regor	2700MHz	2000MHz	1MBx2	N/A	C2	All
AM3	Athlon II X2	ADX220OCK22GM	65W	Regor	2800MHz	2000MHz	512KBx2	N/A	C3	All
AM3	Athlon II X2	ADX215OCK22GM	65W	Regor	2700MHz	2000MHz	512KBx2	N/A	C3	All
AM3	Athlon II X2	ADX215OCK22GQ	65W	Regor	2700MHz	2000MHz	512KBx2	N/A	C2	All
AM3	Sempron X2	SDX190HDK22GM	45W	Regor	2500MHz	2000MHz	512KBx2	NA	C3	P1.20
AM3	Sempron	SDX150HBK13GM	41W	Sargas	2900MHz	2000MHz	1MB	NA	C3	P1.20
AM3	Sempron	SDX145HBK13GM	45W	Sargas	2800MHz	2000MHz	1MB	N/A	C3	All
AM3	Sempron	SDX140HBK13GQ	45W	Sargas	2700MHz	2000MHz	1MB	N/A	C2	All
