RF zender 433MHz module 2000mW 5-12VDC H34P

Beschrijving

Informatie (ENG):

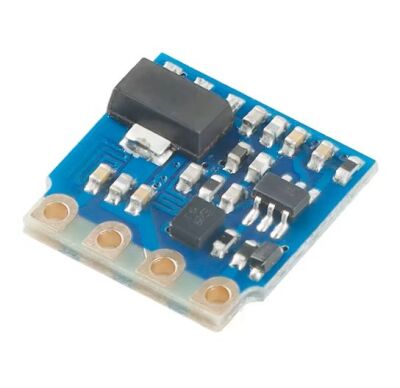

The H34P is an ASK/OOK transmitter module with independent intellectual property rights and a power output of 2000mW. It has a line-of-sight range of over 1km. The module uses a high-performance RF integrated chip and has a built-in harmonic suppression circuit. It features ultra-small size, low power consumption, wide voltage range, high stability, and high cost performance, making it an ideal choice for various remote control systems and wireless data transmission systems.

Parameters:

• Operating frequency: 433.92MHz

• Operating voltage: 9V

• Operating current: 150mA (9V power supply, 40% modulation duty cycle)

• Modulation method: ASK/OOK

• Output power: 32dBm

• Harmonic suppression: >20dBc

• Transmission rate: Maximum 4.8kbps

• Frequency deviation: Maximum ±150kHz

• Antenna impedance: 50Ω

• Data Input: Compatible with CMOS 3-5V level standard

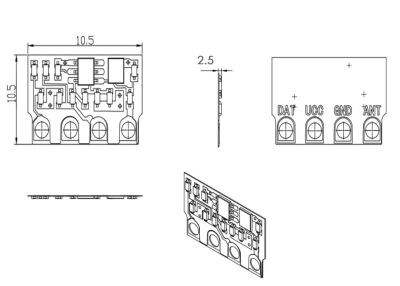

• Dimensions: 10.5×10.5mm×2.5mm [Width×Length×Depth]

• Operating temperature: -45 to +85°C

Application
Wireless Door Bell
Wireless security alarm
Wireless industrial control
Wireless data transmission
