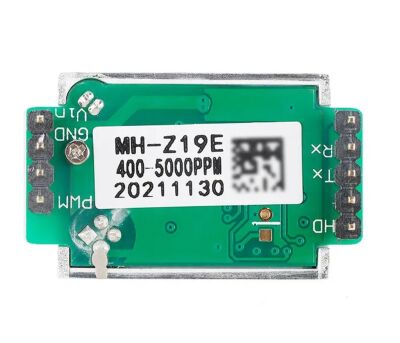

CO2 Koolstofdioxide sensor 400-5000 ppm NDIR MH-Z19E

Beschrijving

Product Details:

The MH-Z19E carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general-purpose intelligent small sensor. It has two products: pin and terminal. It uses the principle of non-dispersive infrared (NDIR) to detect CO2 in the air and has good selectivity. , No oxygen dependence, long life, etc.; built-in temperature compensation; also has serial port output, PWM output, easy to use. The sensor is a high-performance sensor made by closely combining mature infrared absorption gas detection technology with precise optical circuit design and sophisticated circuit design.

Sensor characteristics:

High sensitivity, low power consumption

Excellent stability

Temperature compensation, excellent linear output

Provide serial port (UART), PWM waveform and other output methods

long lasting

Anti-water vapor interference, no poisoning

Application:

HVAC equipment

Air quality monitoring equipment

Fresh air system

Air purification equipment

Smart home

school

Parameters:

Product model: MH-Z19E

Detection gas: carbon dioxide

Power supply voltage: DC(5.0±0.1)V

Average current: <40mA (@5V power supply)

Peak current: 125 mA (@5V power supply)

Interface level: 3.3V (compatible with 5V)

Measuring range: 400~5000ppm optional

Output signal: serial port (UART) (TTL level 3.3V); PWM

Warm-up time: 1min

Response time: T90 <120s

Working temperature: -10℃～50℃

Storage temperature: -20℃～60℃

Working humidity: 0～95%RH (non-condensing)
