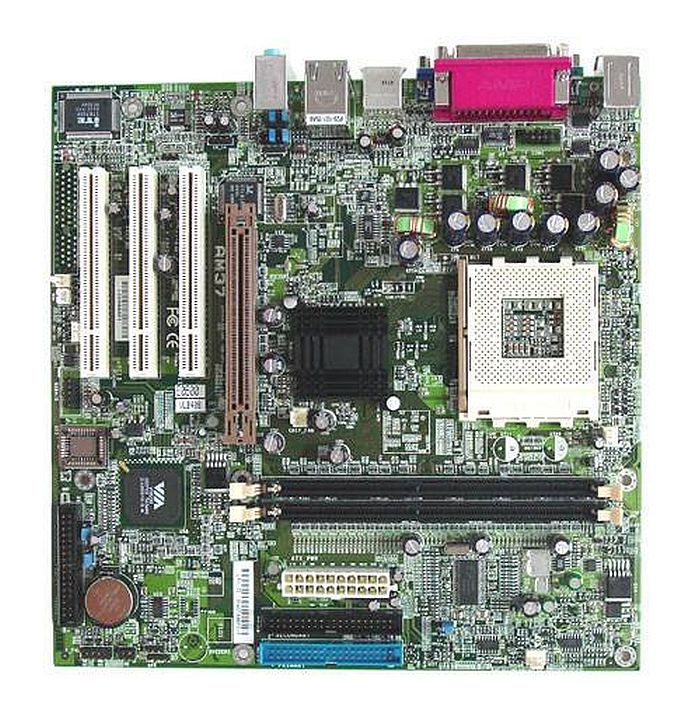

Moederbord Socket 462/A DDR AGP 4X MicroATX 20+4-pins / FIC AM37
FIC
AM37 02
AM37 03
2e KANS
Niet op voorraad
Moederbord Socket 462/A DDR AGP 4X MicroATX 20+4-pins / FIC AM37
FIC
AM37 02
AM37 03

Moederbord Socket 462/A DDR AGP 4X MicroATX 20+4-pins / FIC AM37

€ 19,36 incl. BTW

Availability: Uitverkocht SKU: 2K-MOB-0013-AM37 Categorieën: , Tags: , , , , , , , ,

Voorraad notificatie

Vergelijken
FIC

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.

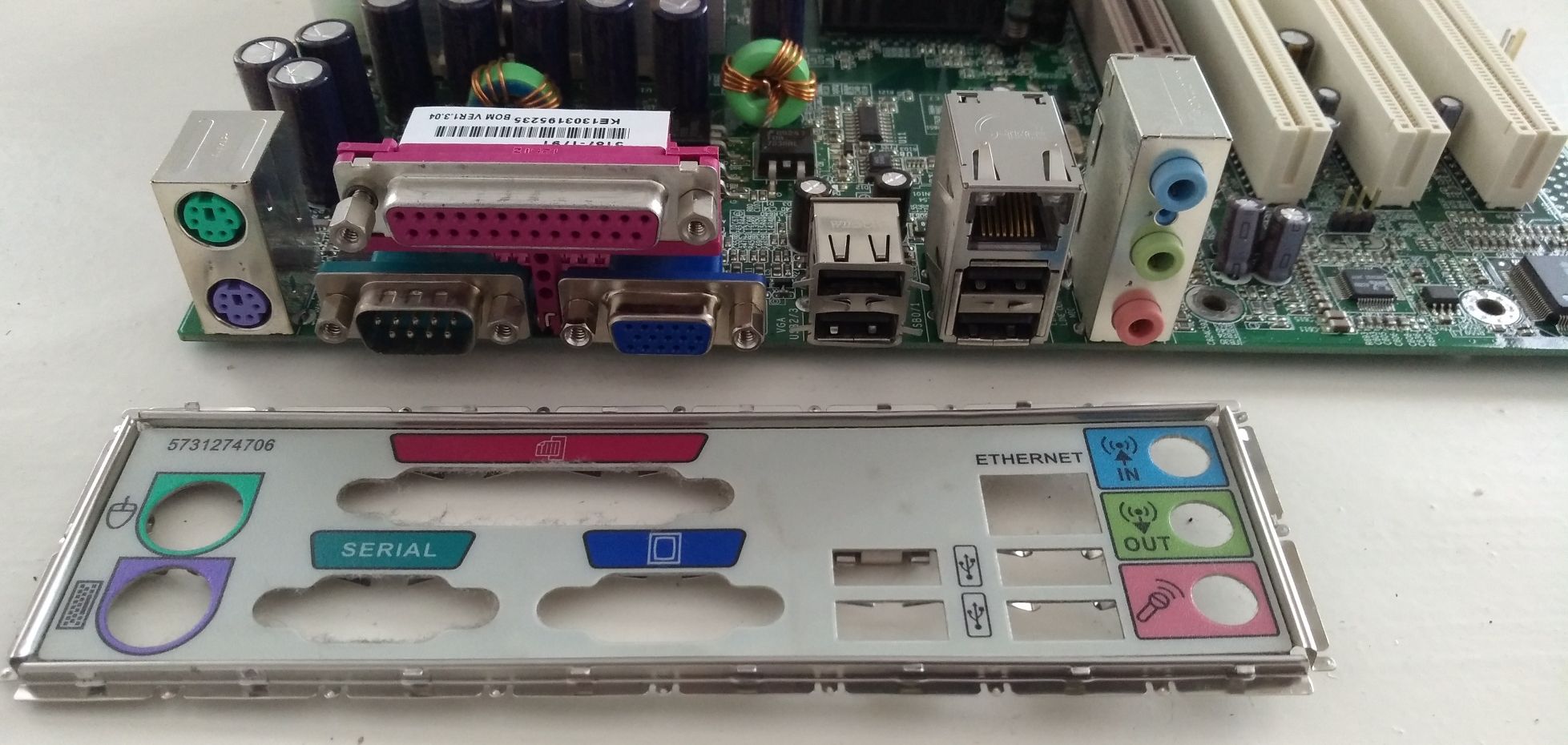

– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)

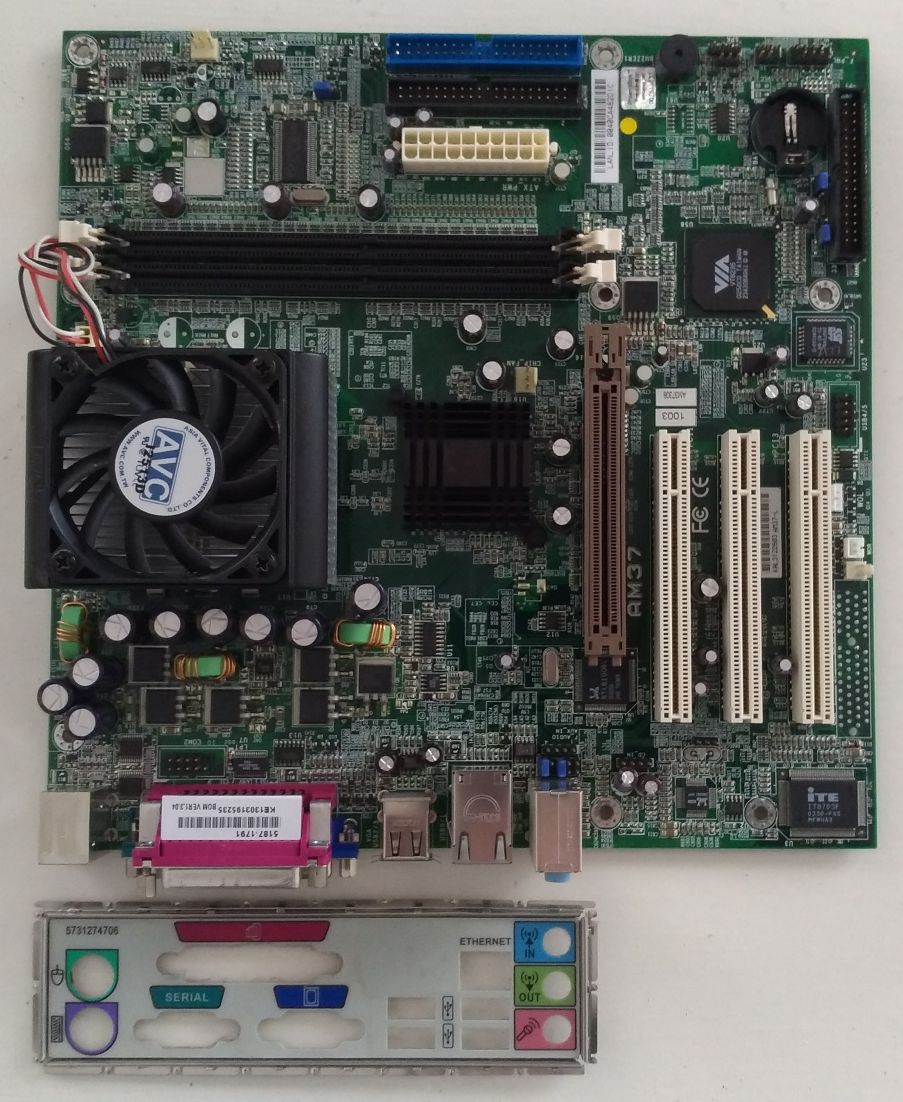

– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

SPECS

GENERAL

  • Interface Type
    AGP 4x
  • Chipset Type
    VIA ProSavageDDR KM266
  • Compatible Processors
    Athlon, Duron, Athlon XP
  • Processor Socket
    Socket A
  • Max Bus Speed
    266 MHz
  • Max Processors Qty
    1
  • Manufacturer
    First Int’l Computer Inc.

STORAGE CONTROLLER

  • Interface Type
    ATA-133

EXPANSION / CONNECTIVITY

  • Expansion Slots
    3 x PCI
    1 x AGP 4x (1.5 V)
    1 x CPU
    2 x DIMM 184-pin
  • Storage Interfaces
    ATA-133 -connectors: 2 x 40pin IDC
  • Internal Interfaces
    1 x floppy
    2 x audio – 4 pin MPC

PROCESSOR

  • Max Supported Qty
    1
  • Installed Qty
    0

INTERFACE PROVIDED

  • Qty
    1, 4
  • Type
    PS/2 keyboard, PS/2 mouse, SPDIF out, USB 2.0, VGA, audio line-in, audio line-out, microphone, parallel, serial
  • Connector Type
    mini-jack

PROCESSOR / MEMORY / STORAGE

  • Max Supported Qty
    1

MEMORY

  • Memory Allocation Technology
    shared video memory (UMA)

CACHE MEMORY

  • Type
    none

MISCELLANEOUS

  • Product Type
    motherboard

AUDIO

  • Compliant Standards
    AC ’97

VIDEO

  • Video Output
    graphics adapter
  • Graphics Processor
    S3 ProSavage8

GRAPHICS

  • Graphics Controller
    S3 ProSavage8
  • Memory Allocation Technology
    Shared video memory (UMA)

AUDIO OUTPUT

  • Compliant Standards
    AC ’97
  • Signal Processor
    VIA VT8235
  • Type
    sound card
  • Form Factor
    integrated

RAM

  • Max Supported Size
    2 GB

SUPPORTED RAM

  • Bus Clock
    266 MHz
  • Speed
    PC2100
  • Technology
    DDR
  • Max Size
    2 GB

HEADER

  • Brand
    FIC
  • Product Line
    FIC
  • Model
    AM37
  • Packaged Quantity
    1
  • Compatibility
    PC

MAINBOARD

  • Form Factor
    micro ATX
  • Processor Socket
    Socket A
  • Compatible Processors
    Athlon, Athlon XP, Duron
  • Data Bus Speed
    266 MHz
  • Chipset Type
    VIA ProSavageDDR KM266
  • Supported RAM Technology
    DDR SDRAM
  • Supported RAM Speed
    266 MHz
  • Supported RAM Standard
    PC2100

MAINBOARD FEATURES

  • BIOS Type
    Award
  • BIOS Features
    ACPI support, APM support, DMI support, SMBIOS support, flash virus protection, power failure recovery (AC loss resume)
  • Sleep / Wake Up
    RTC (real-time clock) wake up, keyboard wake up, mouse wake up, suspend to RAM (STR), wake on LAN (WOL), wake on ring (WOR)
  • Manual Settings
    FSB ratio (CPU:PCI), FSB ratio (CPU:memory), memory bus frequency
  • Hardware Monitoring
    CPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, system voltage
  • Hardware Features
    NOVUS Feature

INTERFACES

  • Storage
    ATA-133

CABLE DETAILS

  • Type
    IDE cable, floppy cable
  • Included Qty
    1

EXPANSION SLOTS

  • Total Qty
    1, 2, 3
  • Voltage
    1.5 V
  • Free Qty
    1, 2, 3
  • Type
    CPU, DIMM 184-pin, PCI

DIMENSIONS & WEIGHT

  • Width
    9.6 in
  • Depth
    9.6 in

SOFTWARE

  • Software Included
    drivers & utilities

VIDEO MEMORY

  • Memory Allocation Technology
    shared video memory (UMA)

SLOT REQUIRED

  • Type
    none

STORAGE INTERFACES

  • Interface
    ATA-133
  • Connector(s)
    2 x 40pin IDC

INTERNAL INTERFACES

  • Type
    audio, floppy
  • Connector Type
    4 pin MPC
  • Qty
    1, 2

FEATURES

  • Manual Settings
    Memory bus frequency, FSB ratio (CPU:PCI), FSB ratio (CPU:memory)
  • BIOS Type
    Award
  • Hardware Features
    NOVUS Feature
  • BIOS Features
    ACPI support, APM support, DMI support, flash virus protection, power failure recovery (AC loss resume), SMBIOS support
  • Sleep / Wake Up
    Keyboard wake up, RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on ring (WOR)
  • Hardware Monitoring
    CPU core temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage

GENERAL

  • Manufacturer
    First Int’l Computer Inc.

Extra informatie

Gewicht 1000 g
Afmetingen 24 × 24 × 6 mm

Merk

FIC

FIC
