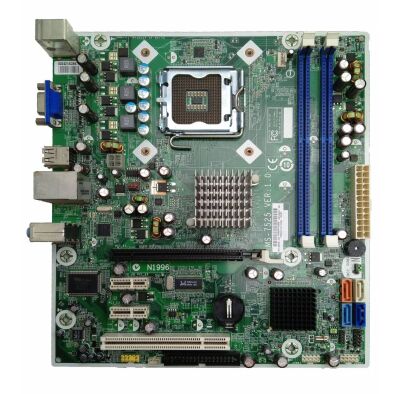

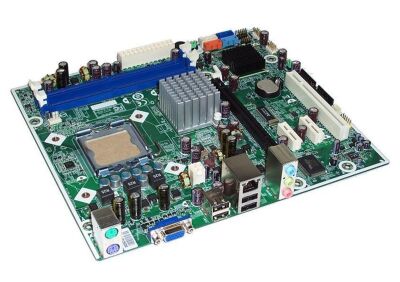

Moederbord Socket LGA775 DDR2 PCI-E 16X MicroATX 24+4-pins / MSI MS-7525 v1.0 ZONDER CPU HEATSINK, MET I/O SHIELD (2e kans)

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zelf zoeken op internet tenzij anders aangegeven.
– Lees informatie goed door kwa ondersteuning processor, geheugen, etc.

Meer informatie:

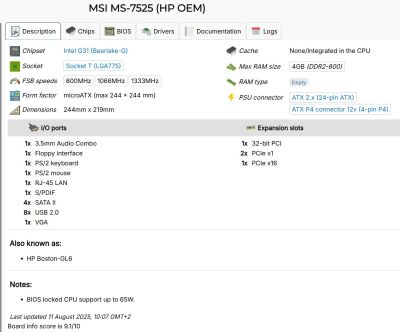

https://theretroweb.com/motherboards/s/msi-ms-7525

https://soggi.org/motherboards/msi-oem/MS-7525-VER-1.0-Boston-GL6.htm

The MS-7525 VER:1.0 (Boston-GL6) is a Socket 775 motherboard built by MSI as an OEM for Hewlett-Packard (HP). HP used this board for building their Compaq dx2390 and Compaq dx2420 Microtower PC, Compaq Presario SG3540IL Desktop PC and it can also be found in many other Pavilion PCs and Compaq Presario PCs.

Sometimes this mainboard is also called MSI Boston, MSI MS-7525 (Boston-GL6), HP MS-7525, HP Boston-GL6 or MS-7525 (Boston Travis GL6).

Specifications

CPU Support

• Intel Core 2 Duo (Conroe, Allendale, Wolfdale-3M, Wolfdale-6M)
• Intel Pentium Dual-Core (Allendale, Wolfdale-3M)
• Intel Pentium D (Smithfield, Presler)
• Intel Pentium 4 Extreme Edition (Gallatin, Prescott 2M)
• Intel Pentium 4 (Prescott, Prescott 2M, Cedar Mill)
• Intel Celeron Dual-Core (Allendale, Wolfdale-3M)
• Intel Celeron (Conroe-L)

Chipset

• Intel G31 (Bearlake) / ICH7 (82801GB)
• NB/SB interconnection via Direct Media Interface with 2 GB/s (4 DMI lanes, 1 GB/s each direction)
• Supports FSB 800/1066/1333 (200/266/333 MHz QDR)
• Supports 128 bit memory interface (Dual Channel)
• Supports Advanced Configuration and Power Interface (ACPI)
• Supports Universal Serial Bus (USB 2.0/1.1)
• Supports PCI Express (PCIe 1.1)
• Supports PCI v2.3
• Supports Serial ATA 3.0 Gbit/s

Memory

• 2 240-Pin DIMM sockets supporting DDR2-SDRAM
• Supports up to 2 DIMMs DDR2 667/800
• Supports up to 2 GiB DIMMs
• Supports max. 4 GiB RAM
• Supports 128 bit memory interface (Dual Channel)

Graphics

• Intel GMA 3100 IGP
• Supports up to 256 MB shared memory
• Supports Pixel Shader Model 2.0
• Supports Vertex Shader Model 2.0/3.0 (Software)
• Microsoft DirectX 9.0c compliant
• OpenGL 1.4 compliant

Audio

• ICH7 integrated Intel HD Audio controller
• Realtek ALC662 HD Audio codec
• Supports High Definition Audio

LAN

• Realtek RTL8101E
• Supports 10/100M Fast Ethernet
• Connected via PCIe

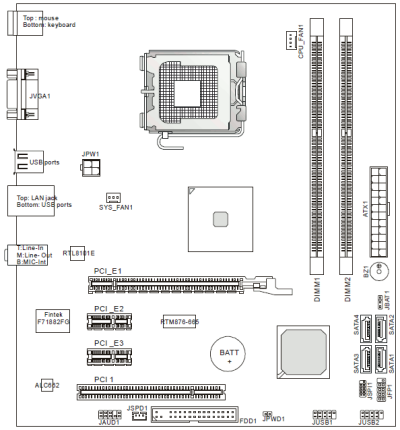

Internal I/O

• 1 PCIe x16
• 2 PCIe x1
• 1 PCI
• 4 SATA
• 1 Floppy port
• 2 USB 2.0/1.1 headers
• 1 S/PDIF out header
• 1 FrontPanel audio header
• 1 Debug header

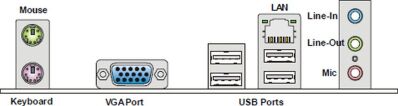

Back Panel I/O

• PS/2 keyboard
• PS/2 mouse
• 4 USB 2.0/1.1 ports
• 1 VGA port
• 1 RJ45 (LAN)
• Audio connectors (line-out, line-in, mic-in)

BIOS

• 8 MBit Flash EEPROM (PLCC32)
• Phoenix – AwardBIOS v6.00PG
• Supports Plug-and-Play (PNP)
• Supports Advanced Power Management (APM)
• Supports Advanced Configuration and Power Interface (ACPI)
• Supports Desktop Management Interface (DMI)

Miscellaneous

• Micro-ATX form factor
• 24 pin ATX power connector
• 4 pin 12V power connector
• Fintek F71882FG hardware monitoring and Super I/O chip
• Realtek RTM876-665 clock generator (PLL)
• Intersil ISL6312 multiphase PWM controller (2-/3-/4-phase operation)
• On-board PC speaker
• 1 4-pin FAN header
• 1 3-pin FAN header
• 6 mounting holes
