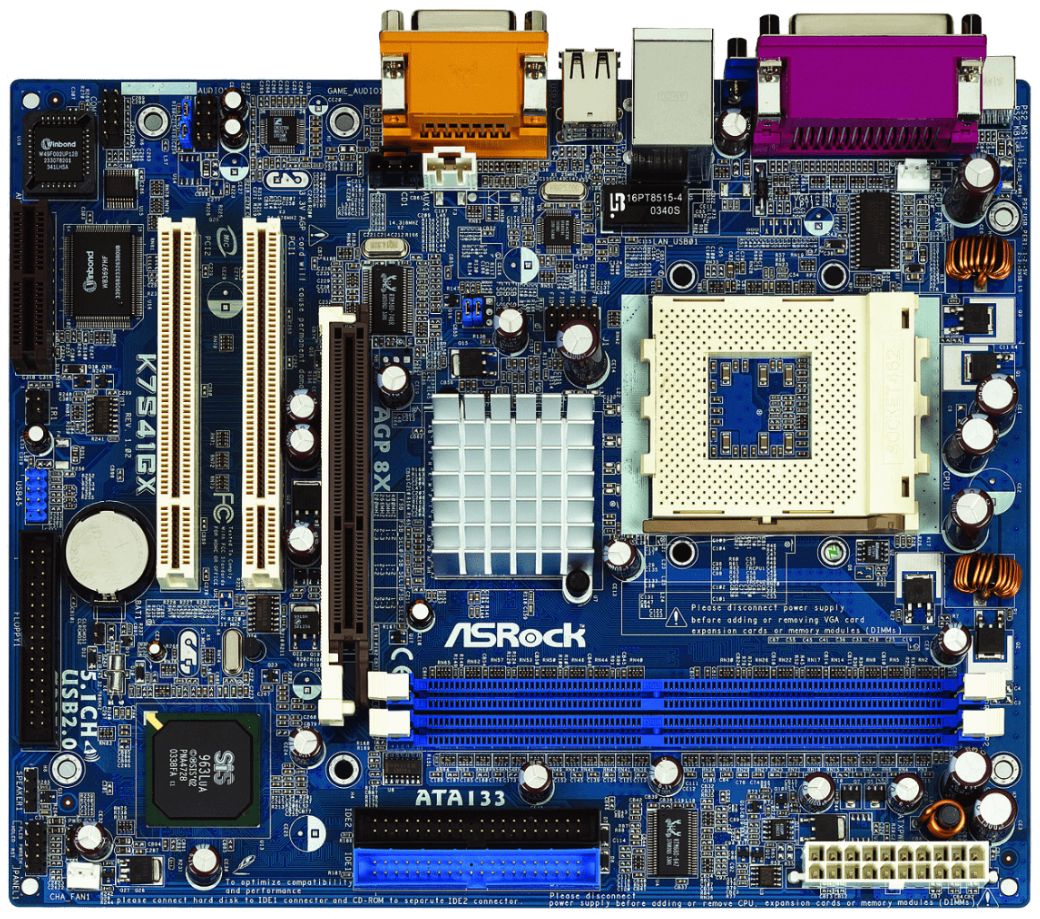

Moederbord Socket 462/A DDR AGP MicroATX 20-pins / ASROCK K7S41GX

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

• Socket A(462) for AMD processor
• SiS 741GX Chipset
• ASRock U-COP
• Hybrid Booster – a safe overclocking feature
• FSB 333/266/200, DDR 333/266
• Integrated Mirage Graphics. Max. 64MB
• 1 slot for AGP 8X/4X 1.5V
• ASRock I/O – 4 ports default on rear panel + 2 ports upgrade VIA^® header
• ATA 133 supported
• On board default 10/100 LAN and 5.1-Ch Audio
• Multi-languages Quick Installation Guide
• ——————————————
•


  Producteigenschappen van ASRock K7S41GX

  General

  CPU – Socket 462, supporting AMD Sempron, Athlon, Athlon XP, Duron

  – FSB 333/266/200 MHz

  Chipset – Northbridge: SiSr 741GX

  – Southbridge: SiSr 963L

  Memory – 2 x DDR DIMM

  – DDR333/266 non-ECC, un-buffered memory

  – Max. capacity of system memory: 2GB

  BIOS – 2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP

  Audio, Video and Networking

  Graphics – Integrated Mirage Graphics

  – Shared Memory Max. 64MB

  Audio – AC97 CODEC

  – 5.1 CH Audio

  LAN – 802.3u, 10/100 Ethernet LAN, WOL supported

  Expansion / Connectivity

  Slots – AGP 8X/4X 1.5V

  – PCI 2 slots, PCI 2.2

  – AMR 1

  Connector – IDE 2 x ATA 133/100/66/33

  – Floppy 1 connector

  – SIR/CIR 1/0

  – CPU/Chassis FAN connectors

  – 20 pin ATX power connector

  – CD/AUX/ audio in

  – Front panel audio connector

  Rear Panel I/O ASROCK I/O:

  – Keyboard PS2 x1

  – Mouse PS2 x1

  – USB2.0 4 ports default on rear panel + 2 ports upgrade via header

  – Serial 1COM Port Bracket

  – Parallel 1

  – Game/MIDI 1

  – LAN 1 x RJ45

  – Audio I/O Line In/Line Out/Mic.

  – VGA 1

  Other Features / Miscellaneous

  Unique Feature Hybrid Booster:

  – CPU Frequency Stepless control

  – CPU Multiplier

  – CPU Vcore adjustment

  – ASRock U-COP

  – Boot Failure Guard

  Support CD – Drivers

  – Bundle CD includes: Anti Virus Software, ASRock PC DIY Live Demo, Audio Player, etc..

  Accessories – Multi-languages Quick Installation Guide

  – Support CD

  – Floppy/ATA 133/100 Cables

  – 1x COM Port Bracket

  Hardware Monitor – CPU Temperature Sensing

  – Motherboard Temperature Sensing

  – CPU Fan Tachometer

  – Chassis Fan Tachometer

  – Voltage Monitoring: +12V, +5V, +3.3V, Vcore

  Form Factor – MicroATX

  OS – Microsoft Windows 98SE/ME/2000/XP compliant

Extra informatie

Merk

ASRock
