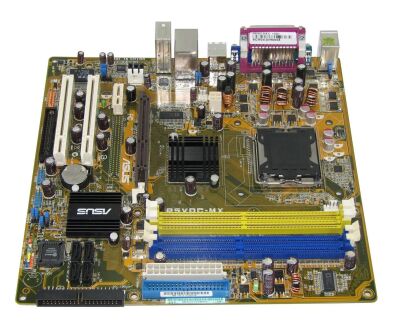

Moederbord Socket LGA775 DDR DDR2 AGP 1.5V MicroATX 24+4-pins / ASUS P5VDC-MX Rev. 2.00G MET CPU HEATSINK, GEEN I/O SHIELD (2e kans) - Afbeelding 1

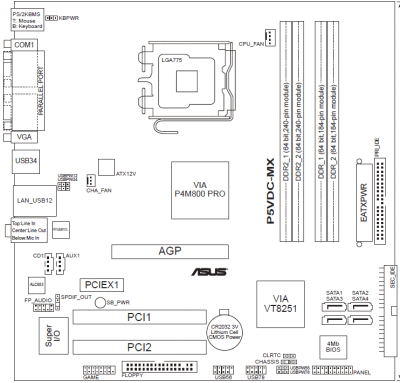

Moederbord Socket LGA775 DDR DDR2 AGP 1.5V MicroATX 24+4-pins / ASUS P5VDC-MX Rev. 2.00G MET CPU HEATSINK, GEEN I/O SHIELD (2e kans) - Afbeelding 2

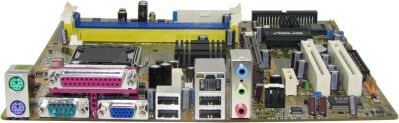

Moederbord Socket LGA775 DDR DDR2 AGP 1.5V MicroATX 24+4-pins / ASUS P5VDC-MX Rev. 2.00G MET CPU HEATSINK, GEEN I/O SHIELD (2e kans) - Afbeelding 3

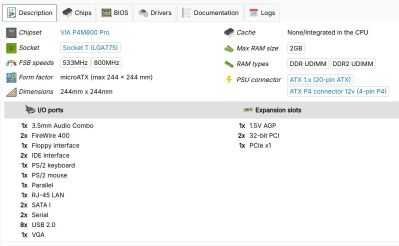

Moederbord Socket LGA775 DDR DDR2 AGP 1.5V MicroATX 24+4-pins / ASUS P5VDC-MX Rev. 2.00G MET CPU HEATSINK, GEEN I/O SHIELD (2e kans) - Afbeelding 4

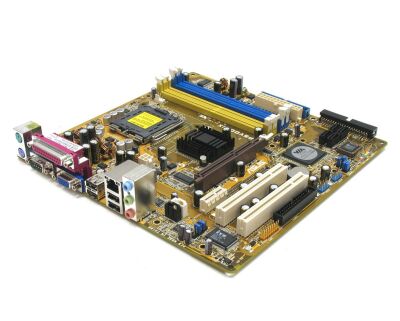

Moederbord Socket LGA775 DDR DDR2 AGP 1.5V MicroATX 24+4-pins / ASUS P5VDC-MX Rev. 2.00G MET CPU HEATSINK, GEEN I/O SHIELD (2e kans) - Afbeelding 5
Moederbord Socket LGA775 DDR DDR2 AGP 1.5V MicroATX 24+4-pins / ASUS P5VDC-MX Rev. 2.00G MET CPU HEATSINK, GEEN I/O SHIELD (2e kans) - Afbeelding 6

Moederbord Socket LGA775 DDR DDR2 AGP 1.5V MicroATX 24+4-pins / ASUS P5VDC-MX Rev. 2.00G MET CPU HEATSINK, GEEN I/O SHIELD (2e kans)

€ 24,20 incl. BTW

Availability: 2 op voorraad Artikelnummer: 2K-MOB-0050-P5VDC-MX Categorieën: , , Tags: , , , , , , ,
Vergelijken
ASUS

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

Meer informatie: https://theretroweb.com/motherboards/s/asus-p5vdc-mx

Form factor:micro-ATX
CPU socket type:Socket 775
Front Side Bus:1066 MHz
533 MHz
800 MHz
Chipset:VIA VT8251
Motherboard features:CrashFree BIOS 2
EZ Flash
MyLogo
Q-Fan
BIOS:AMI BIOS
4 MB Flash
Expansion slots:PCIe x1 x 1
Internal connectors:ATX 12V Power (4-pin) x 1
FDD x 1
Front panel audio x 1
IDE x 2
S/PDIF out x 1
SATA x 4

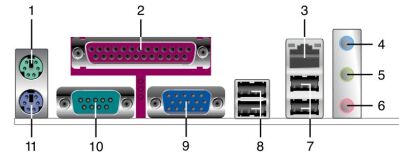

Rear panel ports:PS/2 Keyboard x 1
PS/2 Mouse x 1
Parallel port x 1
RJ45 x 1
Serial port x 1
USB 2.0/1.1 x 4
Included accessories:FDD cable(s) x 1
I/O Shield x 1
SATA cable(s) x 1
SATA power cable(s) x 1
User manual x 1

  • Standard Memory: 0MB (Removable)
  • Maximum Memory: 2GB with DDR1, 2GB with DDR2
  • Memory Expansion: Intel Pentium 4, Intel Celeron, Intel Pentium D
  • CPU: VIA UniChrome Pro P4M800
  • Chipset: N/A
  • Bus Architecture: PCI; PCI Express; USB
  • Mfr System P/N: N/A
  • Memory Comments: Modules must be ordered and installed in pairs for Dual Channel mode. Per ASUS, DDR1 and DDR2 memory can not be used simultaneously. Any configuration up to 2GB can be reached using any combination of 128, 256, 512MB, and 1GB modules or kits.

CPUValidated since PCBValidated since BIOSNote
Celeron D 325J (2.53 GHz, 533 FSB, LGA775)ALLALL GO
Celeron D 326(2.53 GHz, 533 FSB, LGA775)E0,EM64TALL0304 GO
Celeron D 326(2.53 GHz, 533 FSB, revG1, LGA775)ALL0110 GO
Celeron D 330J (2.66 GHz, 533 FSB, LGA775)ALLALL GO
Celeron D 331(2.66 GHz, 533 FSB, LGA775)E0,EM64TALLALL GO
Celeron D 331(2.66 GHz, 533 FSB, revG1, LGA775)ALL0110 GO
Celeron D 335J (2.80 GHz, 533 FSB, LGA775)ALLALL GO
Celeron D 336 (2.80 GHz, 533 FSB, LGA775)E0,EM64TALLALL GO
Celeron D 336 (2.80 GHz, 533 FSB, revG1, LGA775)ALL0110 GO
Celeron D 340J (2.93 GHz, 533 FSB, LGA775)ALLALL GO
Celeron D 341 (2.93 GHz, 533 FSB, LGA775)E0,EM64TALL0304 GO
Celeron D 341 (2.93 GHz, 533 FSB, revG1, LGA775)ALL0110 GO
Celeron D 345J (3.06 GHz, 533 FSB, LGA775)ALLALL GO
Celeron D 346 (3.06 GHz, 533 FSB, LGA775)E0,EM64TALL0304 GO
Celeron D 346 (3.06 GHz, 533 FSB, revG1, LGA775)ALL0110 GO
Celeron D 351 (3.2 GHz, 533 FSB, LGA775)E0,EM64TALL0304 GO
Celeron D 351 (3.2 GHz, 533 FSB, revG1, LGA775)ALL0401 GO
Celeron D 352 (65nm,3.20 GHz, 533 FSB, L2:512KB, revD0, LGA775)ALL0601 GO
Celeron D 352 (revC1,65nm,3.20 GHz, 533 FSB, L2:512KB, LGA775)ALL0503 GO
Celeron D 355 (3.33 GHz, 533 FSB, L2:256KB, revG1, LGA775)ALL0110 GO
Celeron D 356 (65nm,3.33 GHz, 533 FSB, L2:512KB, revD0, LGA775)ALL0601 GO
Celeron D 356 (revB1, 65nm,3.33 GHz, 533 FSB, L2:512KB, LGA775)ALL0401 GO
Celeron D 356 (revC1,65nm,3.33 GHz, 533 FSB, L2:512KB, LGA775)ALL0503 GO
Celeron D 360 (65nm,3.46 GHz, 533 FSB, L2:512KB, revD0, LGA775)ALL0601 GO
Celeron D 365 (65nm,3.60 GHz, 533 FSB, L2:512KB, revD0, LGA775)ALL0601 GO
P4-3.20F GHz (EM64T)ALL0304 GO
P4-3.40 GHz Extreme Ed. (800 FSB, HT, revM0, LGA775)ALL0304 GOCPU of Northwood M0 stepping and SmithField A0 stepping can only be supported before BIOS 0807.
P4-3.40F GHz (EM64T)ALL0304 GO
P4-3.40GHz(FSB800, revR0)ALL0401 GO
P4-3.46 GHz Extreme Ed. (1066 FSB, HT, revM0, LGA775)ALL0304 GOCPU of Northwood M0 stepping and SmithField A0 stepping can only be supported before BIOS 0807.
P4-3.60F GHz (EM64T)ALL0304 GO
P4-3.73 GHz Extreme Ed. (1066 FSB, HT, revN0, LGA775)ALL0304 GO
P4-3.80F GHz (EM64T)ALL0304 GO
P4-3.80GHz(FSB800, revR0)ALL0401 GO
P4-505/505J (2.66 GHz) (533 FSB)(E0,D0)ALL0304 GO
P4-506 (2.66 GHz) (533 FSB, EM64T)(E0,D0)ALL0304 GO
P4-506 (2.66 GHz) (533 FSB, EM64T, revG1)ALL0304 GO
P4-511 (2.8 GHz) (533 FSB, EM64T, revG)ALL0304 GO
P4-511 (2.8 GHz) (533 FSB,revE0, EM64T)ALL0304 GO
P4-515 (2.93 GHz) (533 FSB)(E0,D0)ALL0304 GO
P4-516 (2.93 GHz) (533 FSB, EM64T)(D0,E0)ALL0304 GO
P4-516 (2.93 GHz) (533 FSB, EM64T, revG1)ALL0304 GO
P4-519K (3.06 GHz) (533 FSB, EM64T, revG1)ALL0304 GO
P4-520/520J (2.8E GHz) (800 FSB) (D0)ALLALL GO
P4-520/520J (2.8E GHz) (800 FSB) (E0)ALL0809 GO
P4-521 (2.8GHz, 800 FSB,HT, L2 1MB)(D0,E0)ALL0304 GO
P4-524 (3.06GHz, 533 FSB,HT, L2 1M, revG1)ALL0503 GO
P4-530/530J (3E GHz) (800 FSB) (D0,E0)ALLALL GO
P4-531 (3GHz, 800 FSB, L2 1MB)(D0,E0)ALL0304 GO
P4-540/540J (3.2E GHz) (800 FSB) (E0,D0)ALLALL GO
P4-541 (3.2GHz, 800 FSB, L2 1MB)(E0,D0)ALLALL GO
P4-550/550J (3.4E GHz) (800 FSB) (D0.E0)ALLALL GO
P4-551 (3.4GHz, 800 FSB, L2 1MB,D0,E0)ALL0304 GO
P4-560/560J (3.6 GHz) (800 FSB) (DO,E0)ALLALL GO
P4-561 (3.6GHz, 800 FSB, L2 1MB)ALL0304 GO
P4-570J (3.8 GHz) (800 FSB) (D0,E0)ALLALL GO
P4-571 (3.8GHz, 800 FSB, L2 1MB V E0)ALL0304 GO
P4-630 (3.0E GHz, 800 FSB, L2:2MB, EM64T, HT)ALLALL GO
P4-631 (65nm,3.0GHz, 800 FSB, L2:2MB, revB1)ALL0110 GO
P4-631 (65nm,3.0GHz, 800 FSB, L2:2MB, revD0)ALL0601 GO
P4-640 (3.2E GHz, 800 FSB, L2:2MB, EM64T, HT)ALLALL GO
P4-641 (65nm,3.2GHz, 800 FSB, L2:2MB, revB1)ALL0110 GO
P4-641 (65nm,3.2GHz, 800 FSB, L2:2MB, revD0)ALL0601 GO
P4-650 (3.4E GHz, 800 FSB, L2:2MB, EM64T, HT)ALLALL GO
P4-651 (65nm,3.4GHz, 800 FSB, L2:2MB, revB1)ALL0110 GO
P4-651 (65nm,3.4GHz, 800 FSB, L2:2MB, revD0)ALL0601 GO
P4-660 (3.6E GHz, 800 FSB, L2:2MB, EM64T, HT)ALLALL GO
P4-661 (65nm,3.6GHz, 800 FSB, L2:2MB, revB1)ALL0110 GO
P4-661 (65nm,3.6GHz, 800 FSB, L2:2MB, revD0)ALL0601 GO
P4-662 (3.6 GHz, 800 FSB, L2:2MB, EM64T, HT, revR0)ALL0110 GO
P4-670 (3.8 GHz, 800 FSB, L2:2MB,N0)ALLALL GO
P4-672 (3.8 GHz, 800 FSB, L2:2MB, revR0)ALL0110 GO
Pentium D 805 (2.66 GHz, 533 FSB, revB0)ALL0304 GO
Pentium D 820 (2.8 GHz, 800 FSB, revA0)ALLALL GOCPU of Northwood M0 stepping and SmithField A0 stepping can only be supported before BIOS 0807.
Pentium D 830 (3.0 GHz, 800 FSB, revA0)ALLALL GOCPU of Northwood M0 stepping and SmithField A0 stepping can only be supported before BIOS 0807.
Pentium D 840 (3.2 GHz, 800 FSB, revA0)ALLALL GOCPU of Northwood M0 stepping and SmithField A0 stepping can only be supported before BIOS 0807.
Pentium D 915(2.8GHz, 800 FSB, L2 4MB, revC1, without VT function)ALL0601 GO
Pentium D 915(2.8GHz, 800 FSB, L2 4MB, revD0,without VT function)ALL0709 GO
Pentium D 920(2.8GHz, 800 FSB, L2 4MB, revB1)ALL0110 GO
Pentium D 925(3.0GHz, 800 FSB, L2 4MB, revC1, without VT function)ALL0601 GO
Pentium D 930(3.0GHz, 800 FSB, L2 4MB, revB1)ALL0110 GO
Pentium D 930(3.0GHz, 800 FSB, L2 4MB, revC1)ALL0503 GO
Pentium D 935(3.2GHz, 800 FSB, L2 4MB, 95W, revD0)ALL0709 GO
Pentium D 940(3.2GHz, 800 FSB, L2 4MB, revB1)ALL0110 GO
Pentium D 940(3.2GHz, 800 FSB, L2 4MB, revC1)ALL0403 GO
Pentium D 945(3.4GHz, 800 FSB, L2 4MB, revC1, without VT function)ALL0601 GO
Pentium D 945(3.4GHz, 800 FSB, L2 4MB, revD0, without VT function)ALL0601 GO0601 For 1.03G 0709 For 2.00G
Pentium D 950(3.4GHz, 800 FSB, L2 4MB, revB1)ALL0110 GO
Pentium D 950(3.4GHz, 800 FSB, L2 4MB, revC1)ALL0403 GO
Pentium D 950(3.4GHz, 800 FSB, L2 4MB, revD0)ALL0709 GO
Pentium D 960(3.6GHz, 800 FSB, L2 4MB, revC1)ALL0403 GO
Pentium D 960(3.6GHz, 800 FSB, L2 4MB, revD0)ALL

Extra informatie

Gewicht 1000 g
Afmetingen 24 × 24 × 6 mm
